Martin
D60CTB95

A taper bushed sprocket is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip. Taper bushed sprockets have a tapered bushing bolted into a taper bore with hex head setscrews instead of bolts.

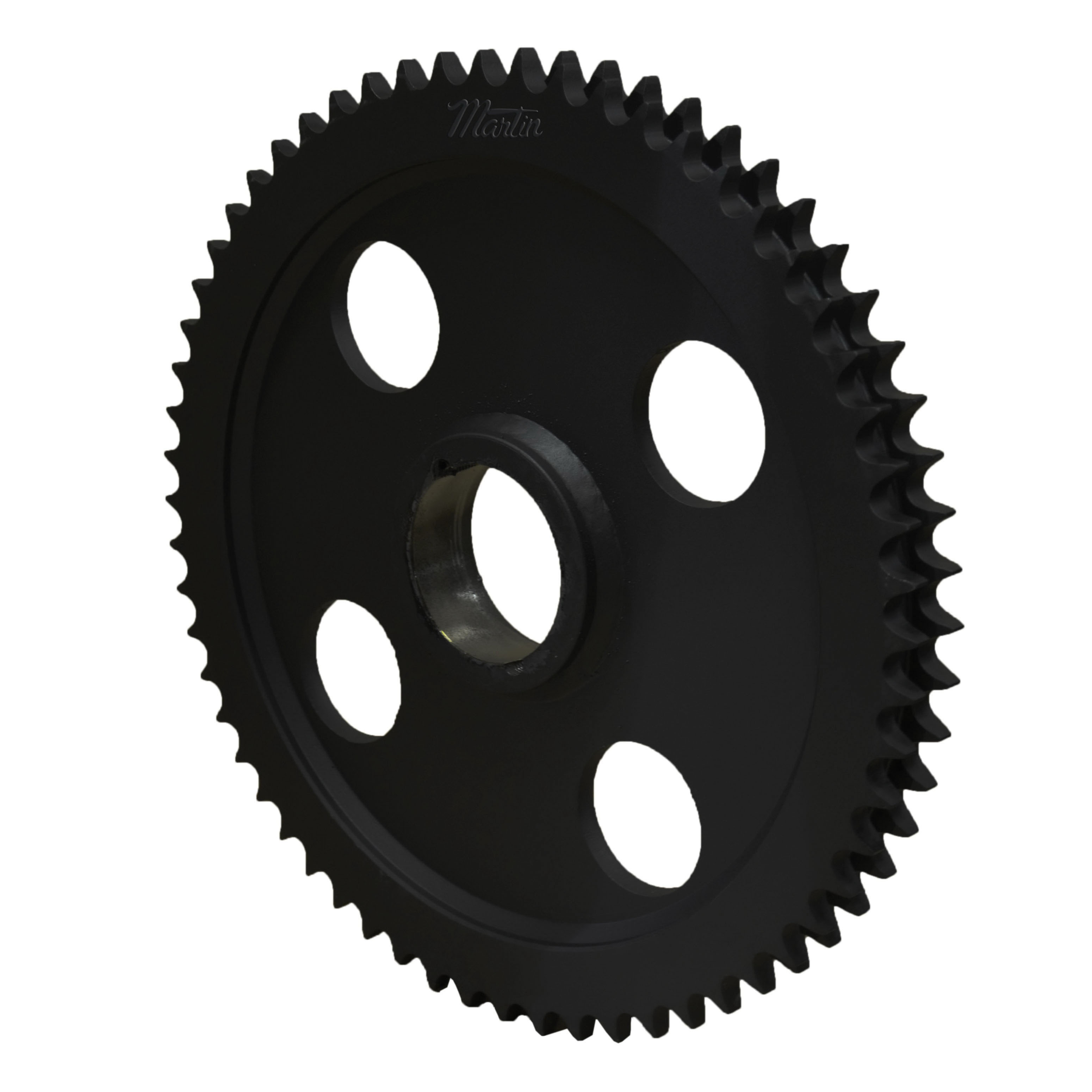

Martin Roller Chain Sprocket, Type C Double Strand Welded Bushed, 0.938 to 3 in Bore, 23.121 in OD, #60 Chain, 95 Teeth, 3/4 in Pitch, 22.684 in Pitch Diameter, 5-1/4 in Diameter Hub, 2 in Length Through Bore, TB 3020 Bushing, Steel

• Interchangeable with other manufacturer's taper bushings
• Precise machining and processes ensure consistent finish and high quality
• Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
• Bores are concentric to pitch line, minimizing run out

• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_815A13B_Specification_Sheet.pdf
