Martin
50A76

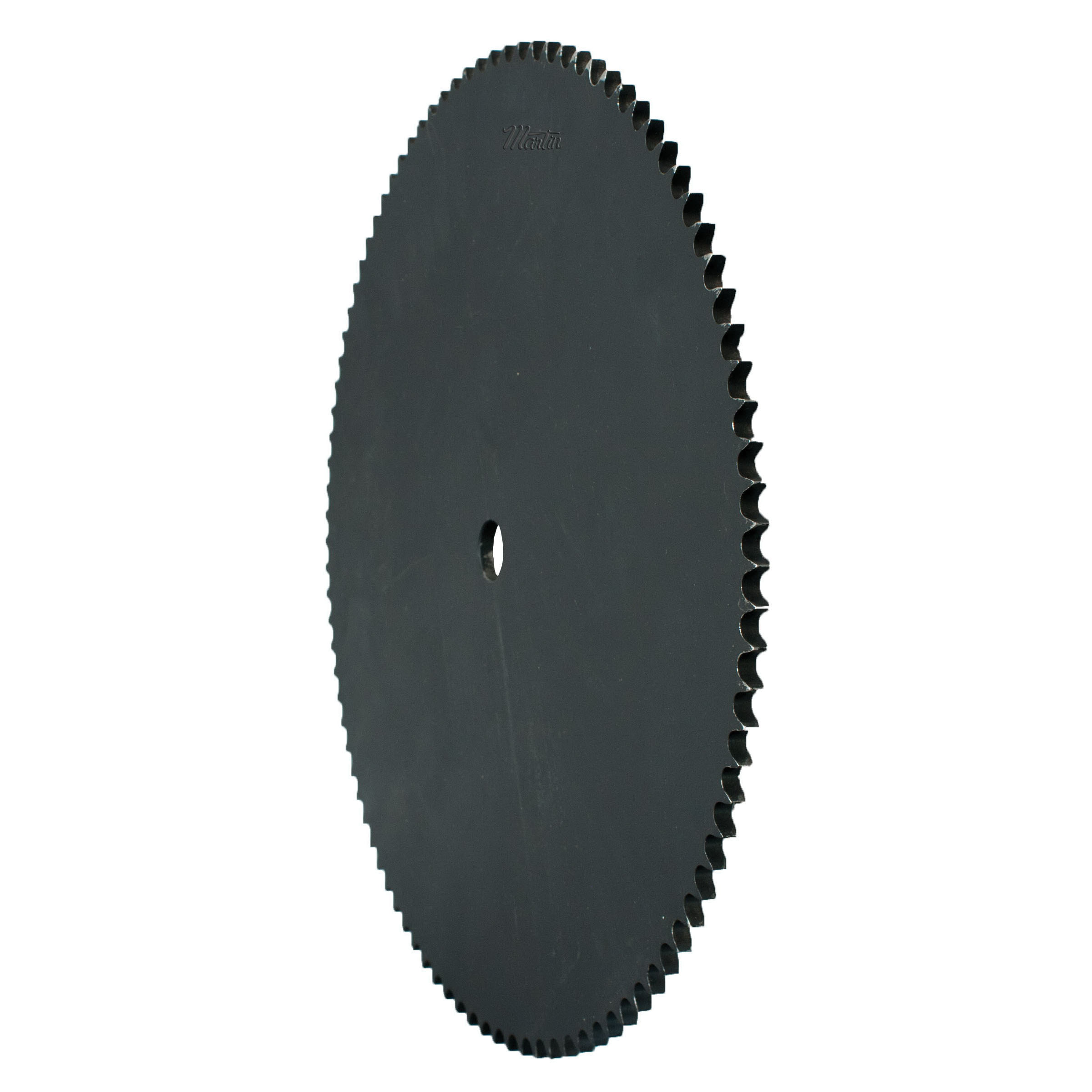

Martin 50A76 Type A Single Strand Solid Reboreable Roller Chain Sprocket, 0.9375 to 14.456 in Dia Bore, 15.486 in OD, #50 Chain, 76 Teeth, 5/8 in Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand: Martin
  • BSC Item#: 50A76 MART
  • MPN: 50A76
  • UPC: 697950013473
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

A Plates are flat sprockets with no hub extension on either side. They can be altered for your application with bolt holes, custom bores, hardened teeth or special hubs welded to them.

Martin Roller Chain Sprocket, Type A Single Strand Solid Reboreable, 0.9375 to 14.456 in Bore, 15.486 in OD, #50 Chain, 76 Teeth, 5/8 in Pitch, 15.124 in Pitch Diameter, 0.343 in Length Through Bore, Steel

  • Precise machining and processes ensure consistent finish and high quality
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_815A13B_Specification_Sheet.pdf
Standard/Approvals      :      ANSI Specified|B29.1 - 1975
