Browning®
1125111

Associated with "C" style sprockets where there is no special machining performed to accommodate keyways or set screws, only a hole to accommodate shaft diameter.

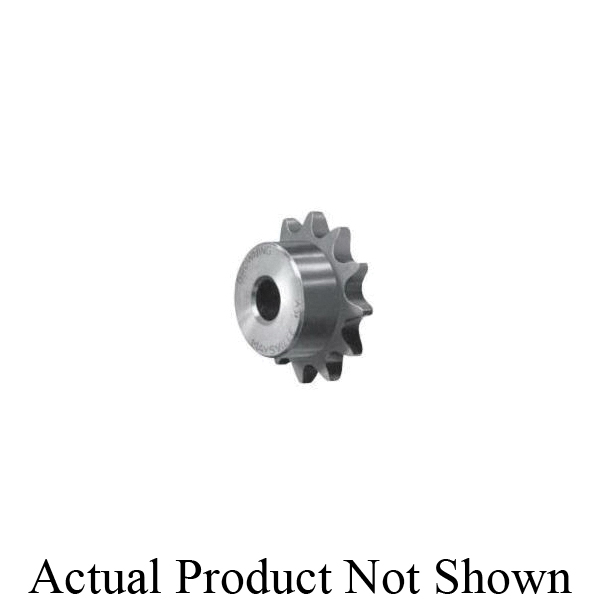

Browning® Roller Chain Sprocket, Single Strand Minimum Bore Type C, 1-1/2 in Bore Dia, 25.29 in Outside Dia, #200 Chain, 30 Teeth, 2-1/2 in Pitch, 23.917 in, 8-1/2 in Hub Dia, 4-1/2 in Length Through Bore, Steel

• Larger hub diameter allows larger bore capacity
• Maximum bore shown will accommodate standard keyways and setscrews over keyway
• Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway
• For use with 2-1/2 in pitch ANSI chain

• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_200A13_Specification_Sheet.pdf
• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_35JA20_Manual.pdf
