Browning®
1122555

Browning®Type B minimum bore sprockets are offered in single, double and triple strands. Offerings include 25 to 200 pitch range. Minimum bore sprockets are available in bore ranges from 1/4 to 8-3/8 in.

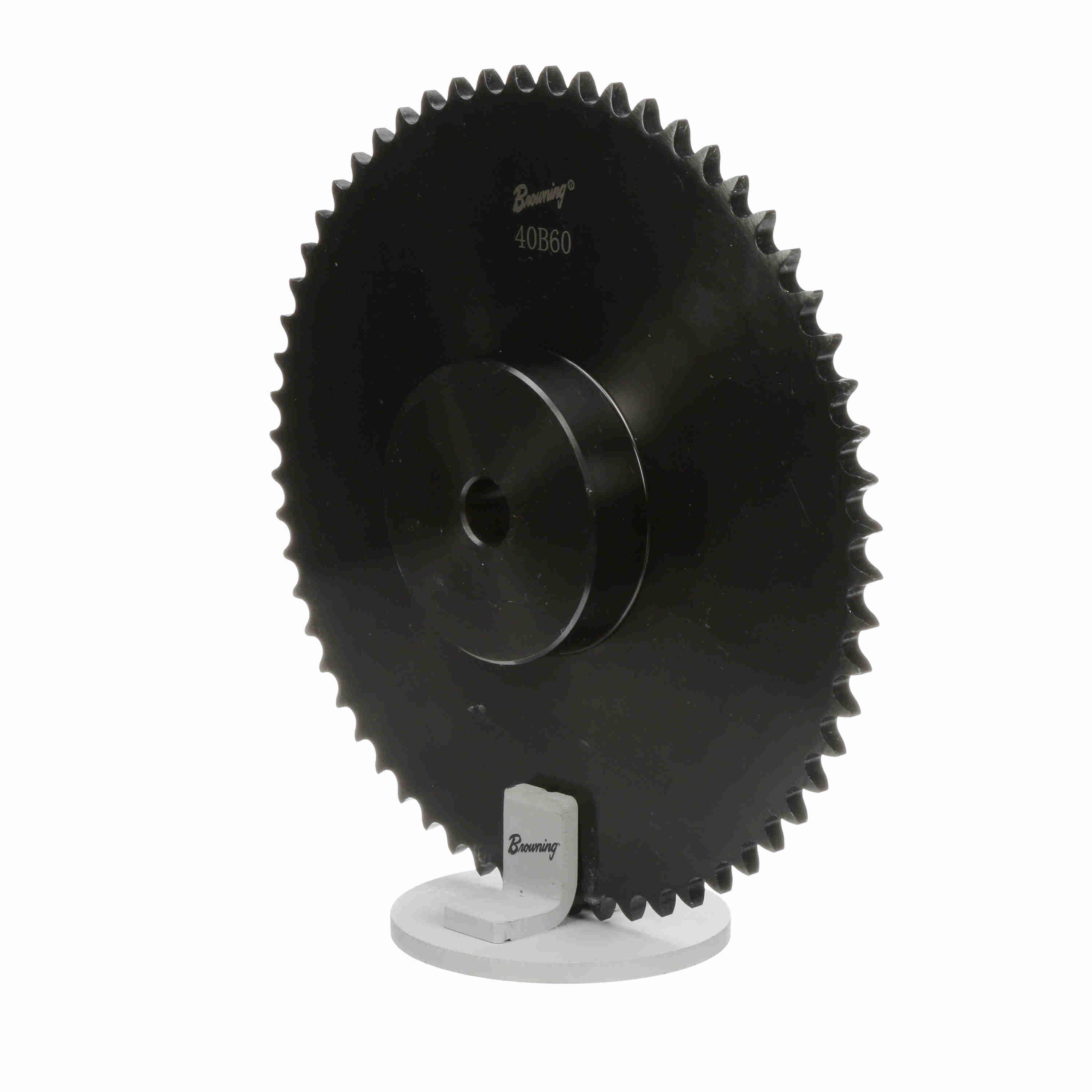

Browning® Roller Chain Sprocket, Single Strand Minimum Bore Type B, 3/4 in Bore Dia, 9.84 in Outside Dia, #40 Chain, 60 Teeth, 1/2 in Pitch, 9.554 in, 3-1/2 in Hub Dia, 1-1/8 in Length Through Bore, Steel

• Larger hub diameter allows larger bore capacity
• Lasts longer than sprockets made from low carbon steel
• Maximum bore shown will accommodate standard keyways and setscrews over keyway
• Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway
• Hub projection on one side
• High quality, high carbon steel
• For use with 1/2 in pitch ANSI chain
