Browning®
1123611

Browning®Type B minimum bore sprockets are offered in single, double and triple strands. Offerings include 25 to 200 pitch range. Minimum bore sprockets are available in bore ranges from 1/4 to 8-3/8 in.

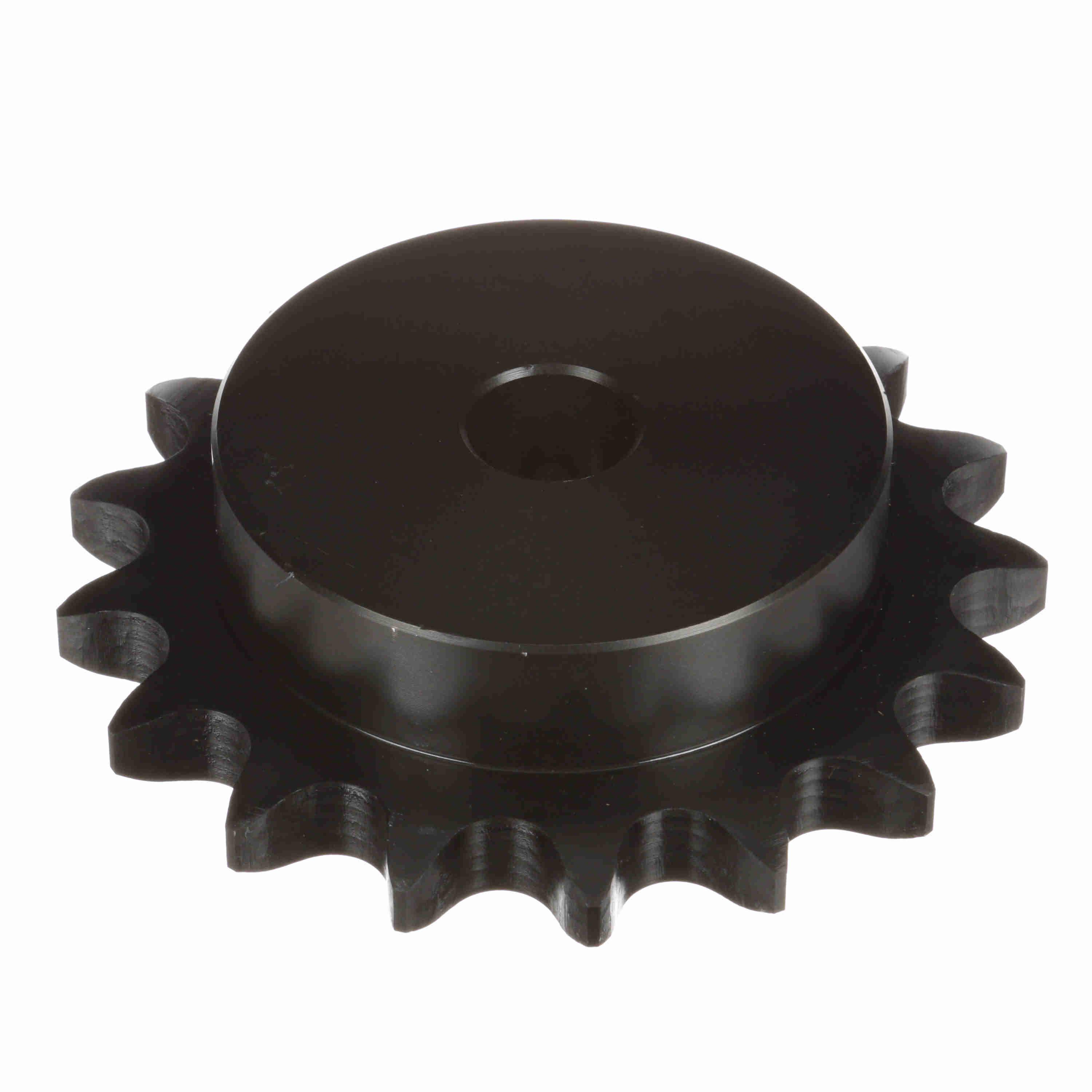

Browning® Roller Chain Sprocket, Single Strand Minimum Bore Type B, 1 in Bore Dia, 5.95 in Outside Dia, #80 Chain, 17 Teeth, 1 in Pitch, 5.442 in, 4 in Hub Dia, 5/8 x 5/16 in Keyway, 1-1/2 in Length Through Bore, Steel

• Larger hub diameter allows larger bore capacity
• Lasts longer than sprockets made from low carbon steel
• Maximum bore shown will accommodate standard keyways and setscrews over keyway
• Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway
• Hub projection on one side
• High quality, high carbon steel
• Hub is recessed for chain clearance
• For use with 1 in pitch ANSI chain
