Martin 35BS13HT 5/8 H35B13-5/8 MART
Send NoImagePrint
  1. pin-int

Martin
35BS13HT 5/8

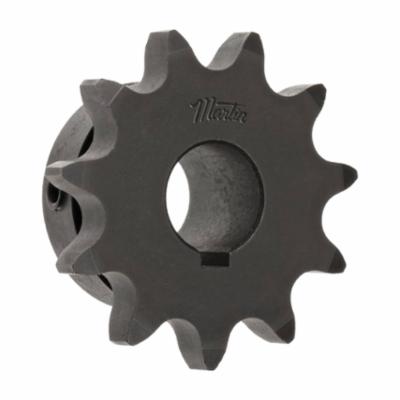

Martin Saber Tooth® 35BS13HT 5/8 Bored-to-Size Type BS Single Pitch Roller Chain Sprocket With Hardened Teeth and Keyway, 5/8 in Dia Bore, 1.746 in OD, #35 Chain, 13 Teeth, 3/8 in Pitch, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand: Martin
  • BSC Item#: H35B13-5/8 MART
  • MPN: 35BS13HT 5/8
  • UPC: 697950159010
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

These finished bore sprockets are hardened, shaft ready and come complete with keyways and setscrews. The keyways are on center line of the tooth. Bored to size sprockets with 1/2 in bores and smaller are stocked with (2) setscrews only.

Martin Saber Tooth® Single Pitch Roller Chain Sprocket, Bored-to-Size Type BS, 5/8 in Bore Dia, 1.746 in Outside Dia, #35 Chain, 13 Teeth, 3/8 in Pitch, 1.567 in, 1-1/4 in Hub Dia, 1/4-20 x 1/4 in Screw, 3/16 x 3/32 in Keyway, 3/4 in Length Through Bore, Steel

  • Keyway is on center line of tooth
  • Stock finished bores
  • Precise machining and processes ensure consistent finish and high quality
  • Bores are concentric to pitch line, minimizing run out
  • 2 set screws keyed on centerline of tooth
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_41SH32_Catalog.pdf
Standard/Approvals      :      PROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov
