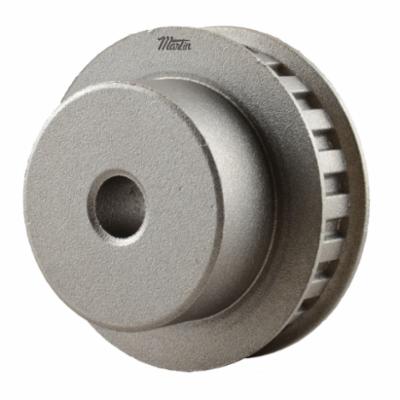

Martin 24L075
Martin 24L075 Solid Type DF-1 Stock Timing Pulley, 5/8 to 1-5/8 in Minimum Plain/Reborable Bore, 2.835 in OD, 24 Grooves, 2.865 in Dia Pitch, 0.812 in W Face
- Manufacturer: Martin Sprocket & Gear
- Brand: Martin
- BSC Item#: 24L075MPB MART
- MPN: 24L075
- UPC: 697950151595
- Min. Order Qty: 1
- Qty. Interval: 1 Availability: Call for Availability
- Sold As: 1/PK
-
Login to see price
Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range, are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.
Martin Stock Timing Pulley, Solid Type DF-1, Minimum Plain/Reborable Bore, 5/8 to 1-5/8 in Bore Dia, 2.835 in Outside Dia, 2.865 in, 24 Grooves, 3/8 in Pitch, 0.812 in Face Width, 3-7/64 in Flange Dia, 2-1/4 in Hub Dia, 3/4 in Hub Projection, 1-3/4 in Overall Length, For Use With: 3/4 in W Type L Belt, Steel
- Exhibit many of the best features of chain drives and belt drives
- Non-slip toothed drive with no metal to metal contact
- No lubrication needed
- Precise machining and processes ensure consistent finish and high quality
