Martin
2AK44 5/8

FHP sheaves (fractional horsepower) are light duty sheaves that utilize "H" bushings or have a finished bore. They are manufactured from class 30 gray iron (30000 tensile strength) and can have a maximum speed of 6500 fpm. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 5000 fpm, or if they will be used on equipment where vibration is a problem. Martin fractional horsepower sheaves come in both single or double groove designs and all have precision machined grooves.

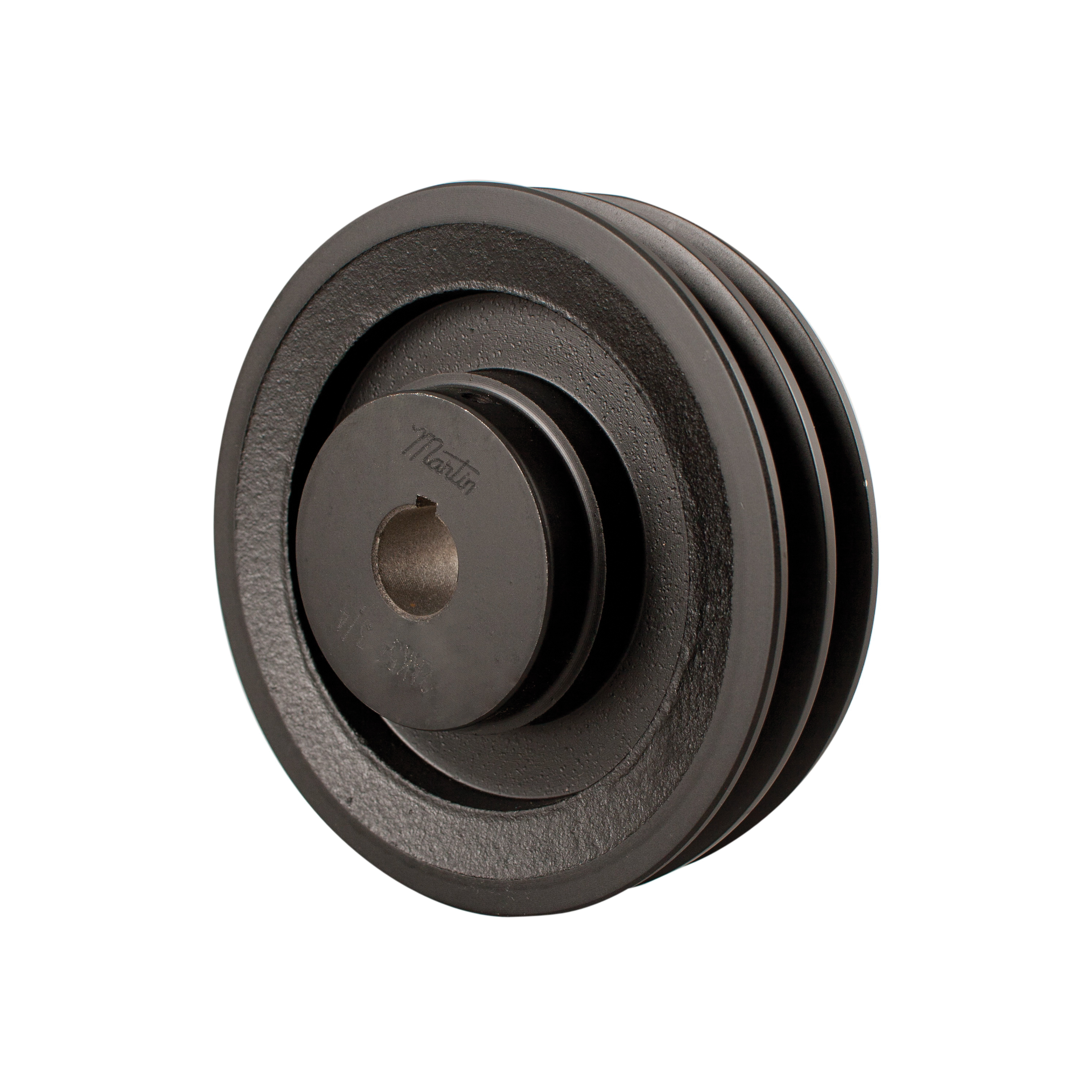

Martin FHP Sheave, Bored-to-Size Type B Web, Series: 2AK, Finished Bore, 5/8 in Bore Dia, 4-1/4 in Outside Dia, 4 in (A/4L)/3.66 in (3L), 2 Grooves, 1-3/8 in Face Width, 0.469 in Hub Projection, H Bushing, 1-27/32 in Overall Length, For Use With: A/3L/4L Cross Section Belts, Cast Iron

• Statically balanced
• Tolerances adhere to industry guidelines
• Precise machining and processes ensure consistent finish and high quality

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_2AK104_1_Catalog.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_2AK104_1_Specification_Sheet.pdf
