Martin 1VP71 1 1/8 1VP71-1-1/8 MART
Send NoImagePrint
  1. pin-int

Martin
1VP71 1 1/8

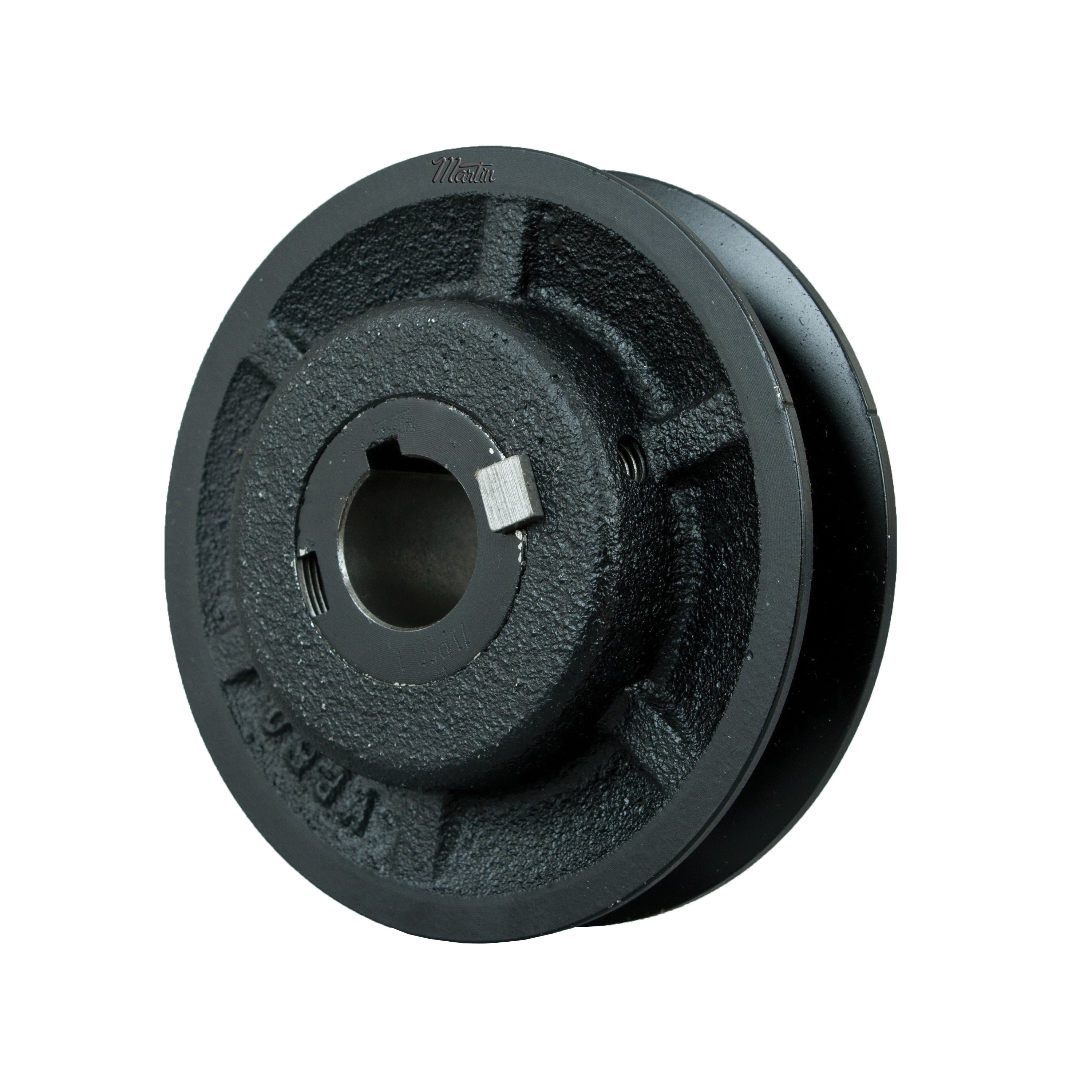

Martin 1VP71 1 1/8 Bored-to-Size Type B Variable Pitch Sheave, 1-1/8 in Finished Bore, 7.1 in OD, 1 Groove, 5.7 to 6.9 in Dia Pitch

  • Manufacturer: Martin Sprocket & Gear
  • Brand: Martin
  • BSC Item#: 1VP71-1-1/8 MART
  • MPN: 1VP71 1 1/8
  • UPC: 697950168104
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

VP sheaves (variable pitch) are manufactured from class 30 gray iron (30,000 tensile strength) and can have a maximum speed of 6500 fpm. All Martin sheaves are statically balanced. Dynamic balancing should be considered for any sheaves exceeding 5000 fpm, or if they will be used on equipment where vibration is a problem. Martin variable pitch sheaves have both single and double groove designs and come with a full range of popular bore sizes including keyway and setscrew. They have a positive locking system and precision machined grooves.

Martin Variable Pitch Sheave, Bored-to-Size Type B, Finished Bore, 1-1/8 in Bore Dia, 7.1 in Outside Dia, 5.7 to 6.9 in, 1 Groove, 2-3/4 in Hub Dia, For Use With: 3L/A or 4L/B or 5L Cross Section Belts, Class 30 Gray Cast Iron

  • Stationary adjustable speed sheaves
  • Positive locking system
  • Precise machining and processes ensure consistent finish and high quality
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_2AK104_1_Catalog.pdf
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_2AK104_1_Specification_Sheet.pdf
