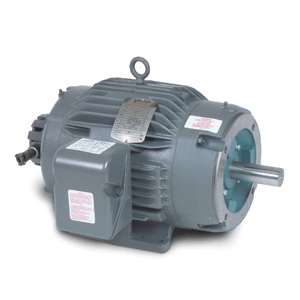

Baldor-Reliance
ZDNM2333T

Industrial electric motors are available for most general purpose applications and processes. However, some AC Variable Speed applications require constant torque at zero speed. Inverter/Vector motors are designed specifically for adjustable speed applications in a standard NEMA Frame motor. Additionally, the AC Inverter/Vector Motors can be ran across the line for bypass operation and can deliver a 1000:1 Speed Range in a standard TENV or TEBC Enclosure.

Baldor-Reliance AC Motor, Continuous-Duty, Automotive Motors, Centrifugal Pump Motors, General Purpose AC Motors Application, Vector (Inverter) Duty Motors Special Features, 15 hp, 230/460 VAC, 37/18.5 A, 60 Hz Frequency, 3 ph, 1765 rpm Speed, 1 Speed, TENV Enclosure, 254TC Frame, 1-5/8 in Dia Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, C-Face/Rigid Base Mounting, 40 deg C, Insulation Class: H, Cast Iron, 1000:1 Constant Torque Speed, 24.05 in L Dimensions

• Low noise design
• Corona free insulation
• 200% torque overload for one minute at base speed
• Insulated bearings
• Constant horsepower 1.5 times base speed
• Special encoder provisions
• 3 thermostats, one per phase
• Normally closed thermostat
• Without auxiliary box, drip cover and heater
• Direct on Line (DOL) starting method
• A motor design
• Polyrex™ EM bearing grease (-20 to 300 deg F)
• 4-pole
