SMC®
MIW8-8D

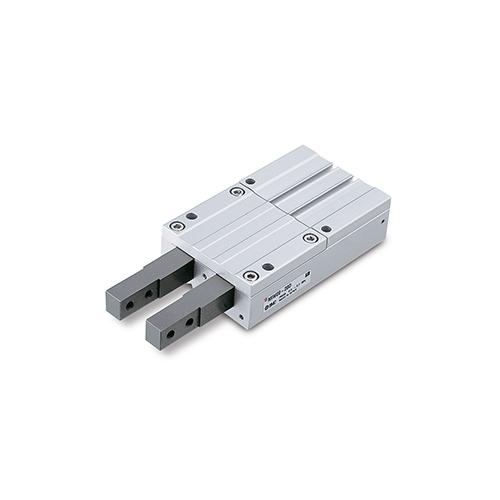

SMC® MIW8-8D MIW 2 Finger Type Escapement, 8 mm W Open, 38 N/sq-mm Internal Holding Force, 50 N/sq-mm External Holding Force

  • Manufacturer: SMC Corporation of America
  • Brand: SMC®
  • BSC Item#: MIW8-8D SMC
  • MPN: MIW8-8D
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

SMC®, MIW8-8D, Escapement, 2 Finger Type, Series: MIW, 8 mm Open Width, 38 N/sq-mm Internal Holding Force, 50 N/sq-mm External Holding Force, 8 mm Stroke Length, 0.2 to 0.7 MPa Pressure, -10 to 60 deg C

  • Stroke lengths are 8, 12, 20, 25, 32 mm
  • Scraper option
  • Stroke adjuster option
  • Auto switch capable
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SMC_MIW32_32D2S_M9PVZ_Catalog.pdf
Standard/Approvals      :      RoHS Compliant
