SMC® MXS25-150 MXS25150 SMC
Send NoImagePrint
  1. pin-int

SMC®
MXS25-150

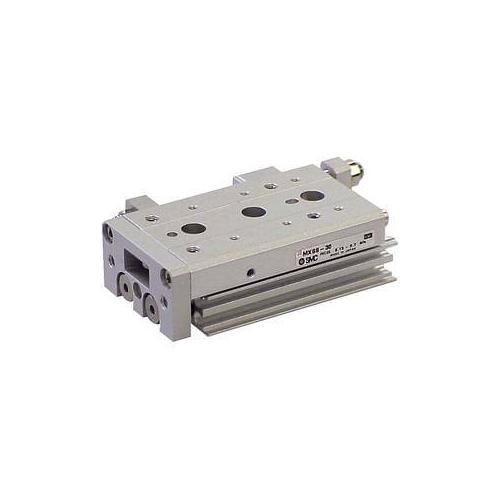

SMC® MXS25-150 MXS Precision Slide Table, 25 mm Cylinder Bore, 150 mm L Stroke, 687 N Push, 529 N Pull Max Force, Double Acting Cylinder Action

  • Manufacturer: SMC Corporation of America
  • Brand: SMC®
  • BSC Item#: MXS25150 SMC
  • MPN: MXS25-150
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

SMC®, MXS25-150, Precision Slide Table, Series: MXS, 25 mm Cylinder Bore, 150 mm Stroke Length, 687 N Push, 529 N Pull Maximum Force, Double Acting Cylinder Action, 1/8 in BSPT Port, 0.15 to 0.7 MPa Pressure, -10 to 60 deg C, 62 mm H x 92 mm W x 311 mm L Dimensions

  • Rubber bumper with stroke adjuster
  • Shock absorber option
  • End lock option in the event of air pressure loss
  • PTFE grease or food grade grease option
  • Auto switch capable
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SMC_MXS16_75A_M9PSAPC_Catalog.pdf
Standard/Approvals      :      RoHS Compliant
Application      :      For prevents the slide table from dropping in vertical applications
