SMC®
MHZ2-10DN

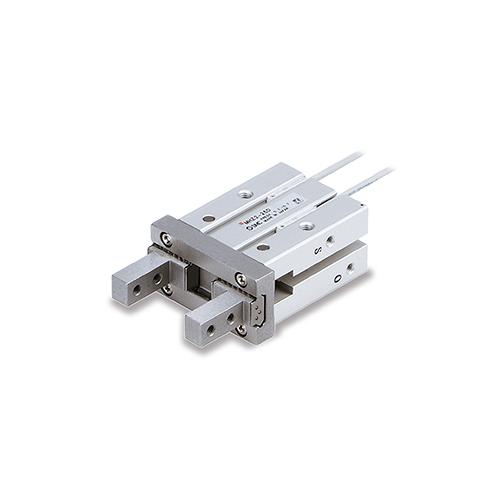

SMC® MHZ2-10DN MHZ2 2-Finger Standard Air Gripper, 15.2 mm W Open, 11.2 mm W Closed, 17 N Internal Holding Force, 11 N External Holding Force

  • Manufacturer: SMC Corporation of America
  • Brand: SMC®
  • BSC Item#: MHZ210DN SMC
  • MPN: MHZ2-10DN
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

SMC®, MHZ2-10DN, Air Gripper, 2-Finger Standard, Series: MHZ2, 15.2 mm Open Width, 11.2 mm Closed Width, 17 N Internal Holding Force, 11 N External Holding Force, 29 to 102 psi Pressure, 14 to 140 deg F, M3x0.5 Port, 57 mm Overall Length

  • High repeatability ±0.01 mm
  • Standard, narrow and flat finger options
  • Auto switch capable
  • Option for NSF-H1, food grade lubricant
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SMC_MHZ2_20D_Catalog.pdf
Standard/Approvals      :      RoHS Compliant|NSF-H1 Certified
