SMC®
CXSJM10-20

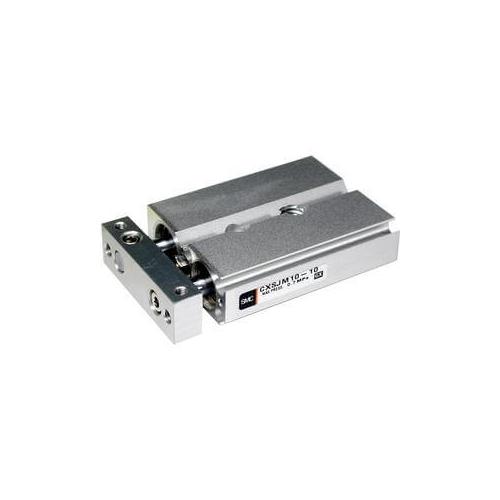

SMC® CXSJM10-20 CXSJ Compact Dual Piston Rods, 10 mm Cylinder Bore, 20 mm L Stroke, 110 N Push, 70 N Pull Max Force, Double Acting Cylinder Action, Direct Mounting

  • Manufacturer: SMC Corporation of America
  • Brand: SMC®
  • BSC Item#: CXSJM10-20 SMC
  • MPN: CXSJM10-20
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

SMC®, CXSJM10-20, Dual Piston Rods, Compact, Series: CXSJ, 10 mm Cylinder Bore, 20 mm Stroke Length, 110 N Push, 70 N Pull Maximum Force, Double Acting Cylinder Action, M5 x 0.8 Port, 6 mm Rod Diameter, 0.1 to 0.7 mpa Pressure, -10 to 60 deg C, Rubber Cushion, Direct Mounting, 42 mm H x 15 mm W x 76 mm L Dimensions

  • Non-rotating accuracy ± 0.1 deg
  • Stroke lengths up to 100mm
  • Auto switch capable
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SMC_CXSL32_50A_Catalog.pdf
Standard/Approvals      :      RoHS Compliant
Application      :      Allows for smooth operation that ensures stable travel resistance
