SMC®
CXSM20-25

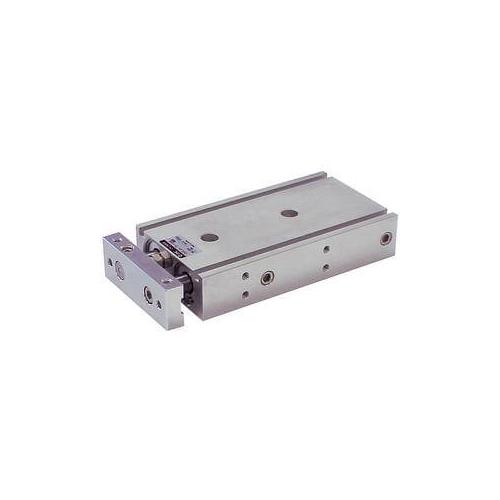

SMC® CXSM20-25 CXS Slide Bearing Cylinder, 20 mm Cylinder Bore, 25 mm L Stroke, 330 N Max Force, Double Acting Cylinder Action, Direct Mounting

  • Manufacturer: SMC Corporation of America
  • Brand: SMC®
  • BSC Item#: CXSM20-25 SMC
  • MPN: CXSM20-25
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

SMC®, CXSM20-25, Cylinder, Slide Bearing, Series: CXS, 20 mm Cylinder Bore, 25 mm Stroke Length, 330 N Maximum Force, Double Acting Cylinder Action, M5 x 0.8 Port, 0.05 to 0.7 mpa Pressure, -10 to 60 deg C, Rubber Cushion, Direct Mounting, 25 mm in H x 64 mm in W x 119 mm in D Dimensions

  • Non-rotating accuracy ± 0.1 deg
  • Stroke adjustment range from 0 to 5 mm
  • Auto switch capable
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SMC_CXSL32_50A_Catalog.pdf
Standard/Approvals      :      RoHS Compliant
