SMC®
KQ2H12-U04A

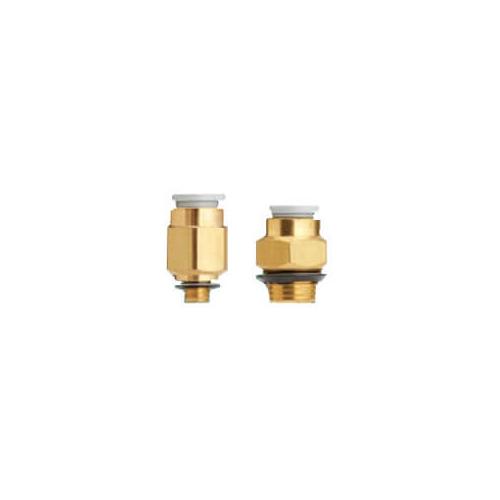

SMC®, KQ2H12-U04A, One Touch Fitting, Metric with Sealant, Series: KQ2, Fitting/Connector: Connector, 12 mm x Uni-1/2 Nominal, Push-In End Style, 22 mm Hex, 17.7 mm Length, -100 kPa to 1 MPa Pressure, -5 to 60 deg C Air, 0 to 40 deg C Water Operating, Brass, Gray/White

• Accepts FEP, PFA, nylon, soft nylon, and polyurethane tubes
• Operating pressure range, -100kPa to 1MPa
• Release collar allows easy removal of tubing without causing damage to the tube
• This product is not intended for use in potable water systems

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SMC_KQ2T11_35AS_Catalog.pdf
