SMC®
MGPM16-30Z

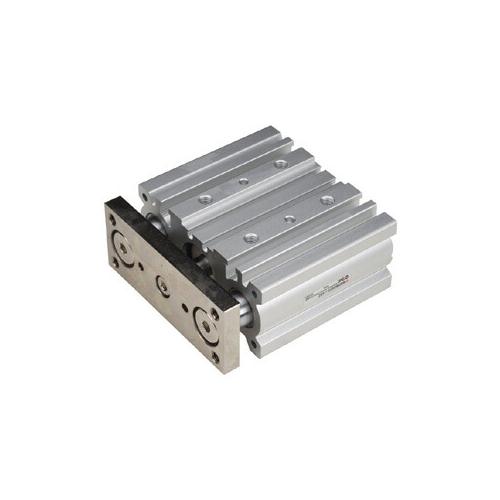

SMC® MGPM16-30Z MGP Type M Slide Bearing, 16 mm Cylinder Bore, 30 mm L Stroke, Double Acting Cylinder Action

  • Manufacturer: SMC Corporation of America
  • Brand: SMC®
  • BSC Item#: MGPM16-30Z SMC
  • MPN: MGPM16-30Z
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

SMC®, MGPM16-30Z, Slide Bearing, Type M, Series: MGP, 16 mm Cylinder Bore, 30 mm Stroke Length, Double Acting Cylinder Action, M5 x 0.8 Port, -10 to 60 deg C, Rubber Cushion, Bearing Alloy

  • Non-rotating accuracy +/-0.08 deg (12 and 16 mm bore), +/-0.07 deg (20 and 25 mm bore), +/-0.06 deg (32 and 40 mm bore), +/-0.05 deg (50 and 63 mm bore), +/-0.04 deg (80 and 100 mm bore)
  • Rubber bumpers as standard
  • Auto switch capable
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/SMC_MGPM20TN_250Z_Catalog.pdf
Standard/Approvals      :      RoHS Compliant
Application      :      Suitable for stopping applications
