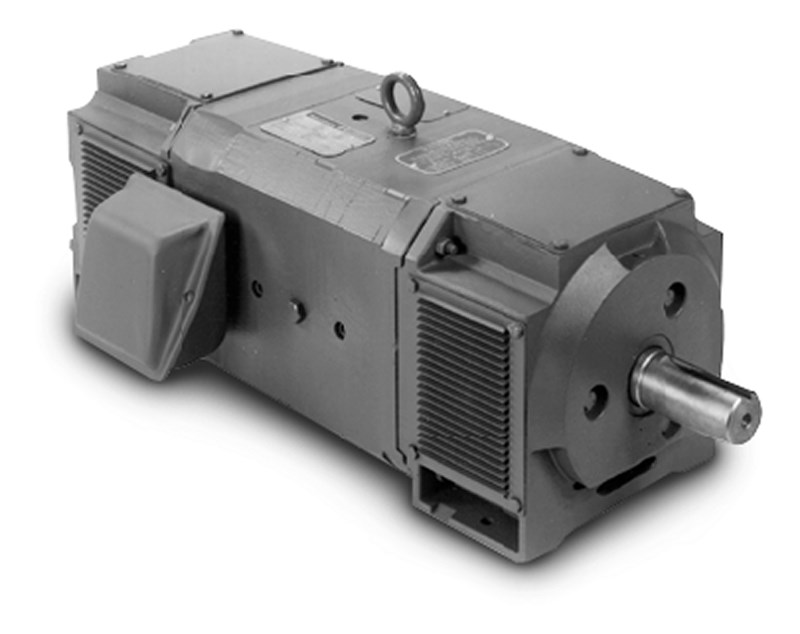

Baldor-Reliance
D2020R

Baldor-Reliance Super-E® DC Motor, SCR Drive Motor Application Type, Continuous Duty Motor, RPM III Shunt Wound Field Motor, Stabilized Shunt Field Winding Special Features, 20 hp, 150/240 VDC, 4.23/74 A, 1750 rpm, DPG, 2113ATZ Frame, 1-7/8 in Shaft, Reversible, Service Factor: 1, 50BC03J30X Ball Bearing, F-1 Mount, 40 deg C, Insulation Class: Class F, 31-1/4 in L

• Unique laminated square frame for improved commutation on rectified power supplies
• The square configuration allows for increased rating per frame size
• High limit thermostat
• Provision for adding adapter mounted feedback device
• Service line brushes with convenient wear indicating reference lines
• PLS™ (Positive lubrication System) for longer bearing and motor life
• 74 A armature, 4.23 A field current rating
• 240 VDC armature, 150 VDC field voltage rating
• Without drip cover

• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0e267db50f369c8b9616651fe1a68abd965d633e4bd2a97d5ba193506b36af71.pdf
• Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f72c3f2fd40e44bf27049362066fbbce79f483ddafb5d33790909f1947046c15.pdf
