FAG B7212-C-T-P4S-DUL B7212C-T-P4S-DUL FAG
Send NoImagePrint
  1. pin-int

FAG
B7212-C-T-P4S-DUL

FAG B7212-C-T-P4S-DUL B72..-C Light Duty Spindle Bearing, 60 mm Dia Bore, 110 mm OD, 2 Rows, 22 mm W, 15 deg, 56000 N Dynamic/31000 N Static/3200 N Fatigue Load

  • Manufacturer: Schaeffler Group
  • Brand: FAG
  • BSC Item#: B7212C-T-P4S-DUL FAG
  • MPN: B7212-C-T-P4S-DUL
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

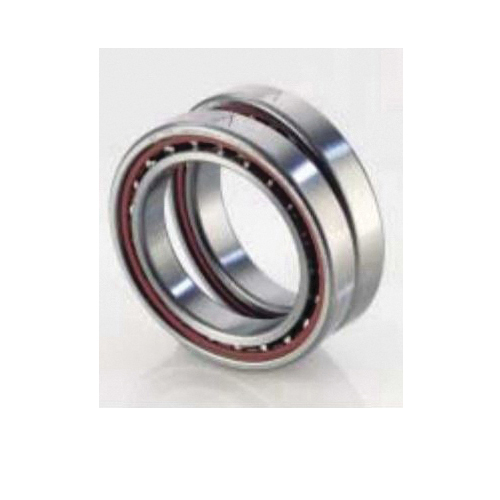

Barden spindle bearings are high precision, single row, angular contact ball bearings. Their special design features including contact geometry, surface design and other properties result in a bearing design that offers high precision, excellent speed ability, high rigidity and low vibration characteristics.

FAG Spindle Bearing, Light Duty, Series: B72..-C, 60 mm Bore, 110 mm OD, 2 Rows, 22 mm Width, 15 deg Contact Angle, Double Seal Closure, 56000 N Dynamic/31000 N Static/3200 N Fatigue Load, Phenolic Resin Cage, 13000 rpm Grease/20000 rpm Oil Maximum

  • Standard design and steel balls
  • Textile laminated phenolic resin cage
  • Outer ring centered
  • ABEC 7 nominal tolerances, ABEC 9 running accuracies
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Barden_100FF3_G_74_Catalog.pdf
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/FAG_B7212_C_T_P4S_DUL_Specification_Sheet.pdf
