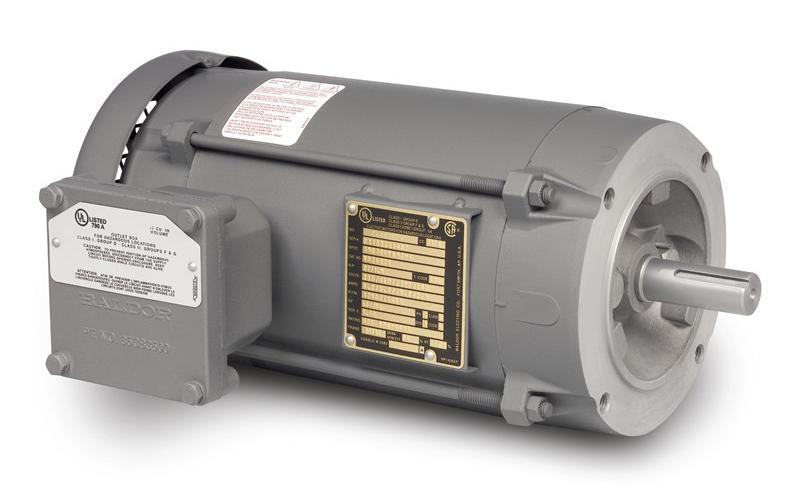

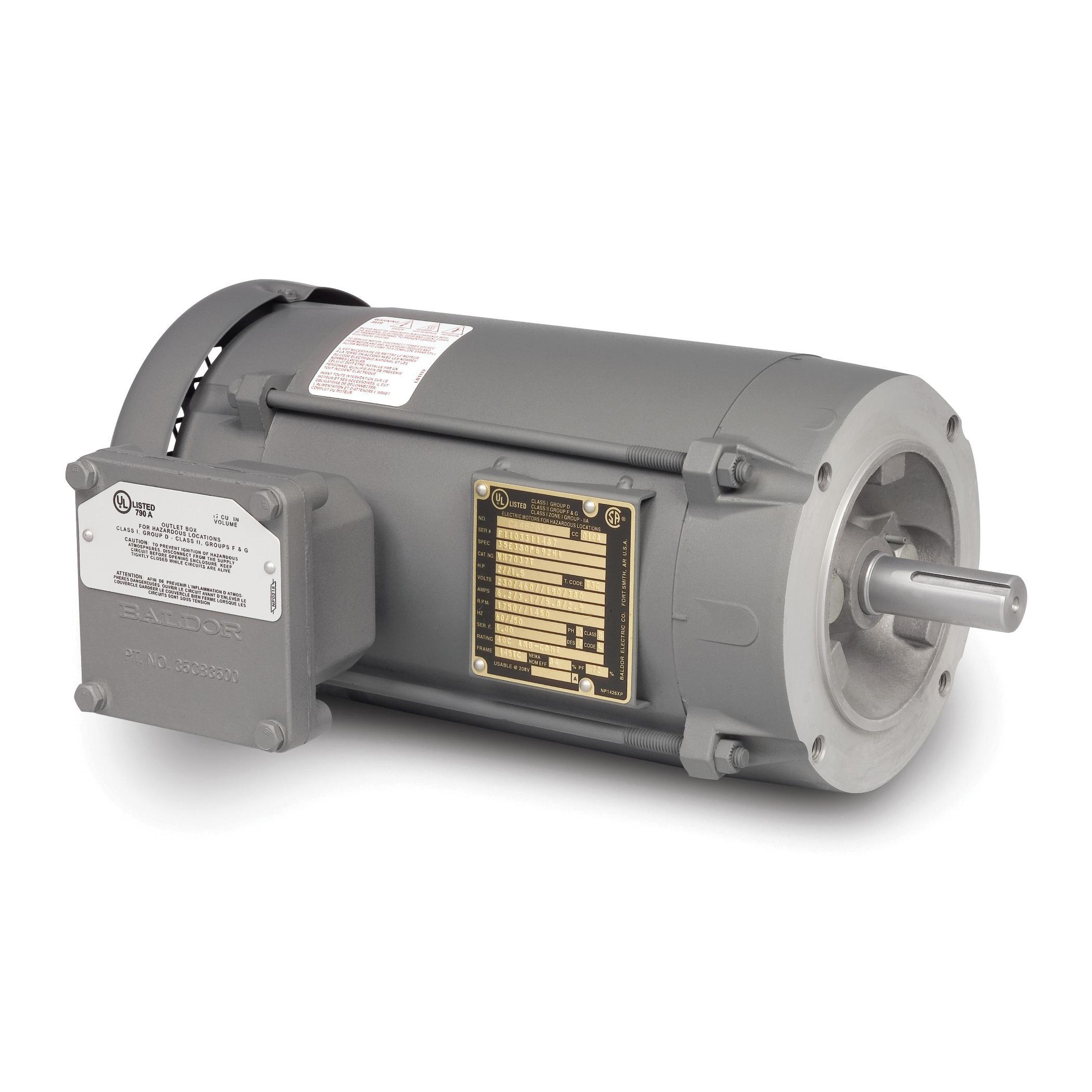

Baldor-Reliance
VL5023A

Baldor-Reliance explosionproof motors are certified for use in hazardous locations or potentially hazardous environments where concentrations of combustible gasses, vapors and or dust may be present. These motors meet UL and CSA standards for use in division based hazardous locations per NFPA70 national electric code and C22.1, the Canadian electric code.

Baldor-Reliance AC Motor, Continuous Duty Type 3524L, Application Type: General Purpose AC Motors, Fan and Blower Motors, Special Features: Explosion Proof AC Motors, 1 hp, 115/230 VAC, 13/6.5 A, 60 Hz, 1 ph, 1725 rpm, 1 Speed, XPFC, 56C Frame, 5/8 in Shaft, Reversible, Service Factor: 1, Ball Bearing, 3 ft-lb, C-Face Footless Mount, 40 deg C, Insulation Class: Class B, Steel, 15.17 in L

• Robust steel and cast iron frame designs
• Auto thermal overload, normally closed thermostats
• Threaded lead inlet
• Low noise vibration dampening base

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_EJM3559_Catalog.pdf
• Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_VL5023A_Line_Drawing.pdf
• Full Engineerin... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_VL5023A_Technical_Drawing.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e86740ecb18e35d4491e8c3b4756c6b430044843b9e5cd221cb9b0d87a696d83.pdf
• Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f72c3f2fd40e44bf27049362066fbbce79f483ddafb5d33790909f1947046c15.pdf
