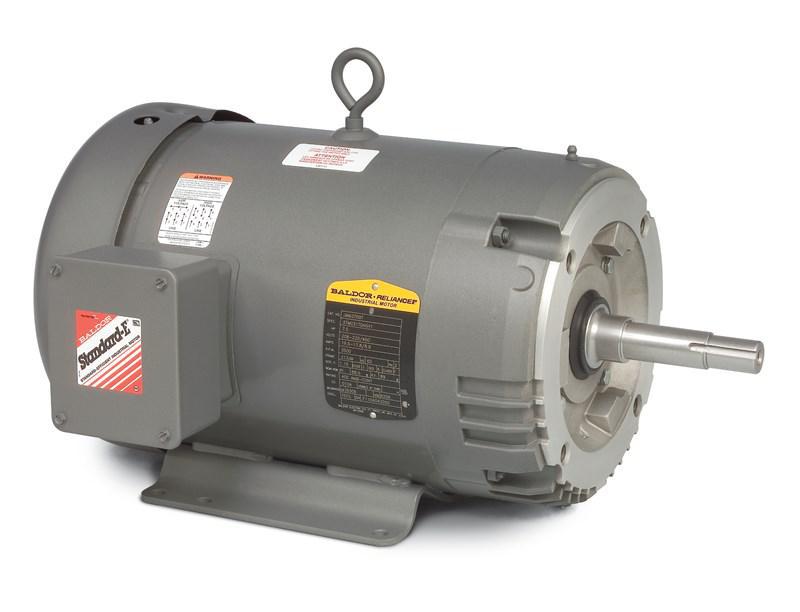

Baldor-Reliance
EJPM3610T

From industrial wastewater to fire suppression systems or commercial pools, Baldor-Reliance pump motors provide value by increasing reliability and reducing maintenance costs. Utilizing energy efficient designs, our pump motors meet NEMA Premium® efficiency and inverter ready with wide variable torque speed ranges. Motor construction can be tailored for specific applications and industries such as food processing, washdown applications or explosion proof enclosures for pumps in hazardous areas.

Baldor-Reliance, EJPM3610T, Pump Motor, C-Face Continuous Duty Close Coupled, General Purpose AC Motors, Pool & Spa Pump Motors, Sewage & Wastewater Pump Motors Application, 3528M Motors, Direct On Line Starting Method Special Features, 3 hp, 230/460 VAC, 8/7.6/3.8 A, 60 Hz Frequency, 3 ph, 3450 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 182JP Frame, 7/8 in Dia Shaft, Reversible Rotation, 1.149 Service Factor, Ball Bearing, 18.7 ft-lb Torque, F-1 Mounting, 40 to 176 deg C, Steel, 19.87 in L Dimensions

• Suitable for inverter use per NEMA MG1 Part 31.4.4.2
• Designed for longevity with a 3 year warranty on premium efficient Super-E® motors
• 7.9 A at 208 V, 7.2 A at 230 V, 3.6 A at 460 V
• Oversize ball bearings for the pump industry
• Locked DE bearing to allow mounting in any configuration

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_EJMM3711T_Catalog.pdf
• Full Engineerin... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_JPM3610T_Technical_Drawing.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b5c542e94a43188f7e1b8573076102a3b1b64bd52d0e51c80a19c57168ac77a3.pdf
• Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f72c3f2fd40e44bf27049362066fbbce79f483ddafb5d33790909f1947046c15.pdf
