NACHI
6008ZZEC3

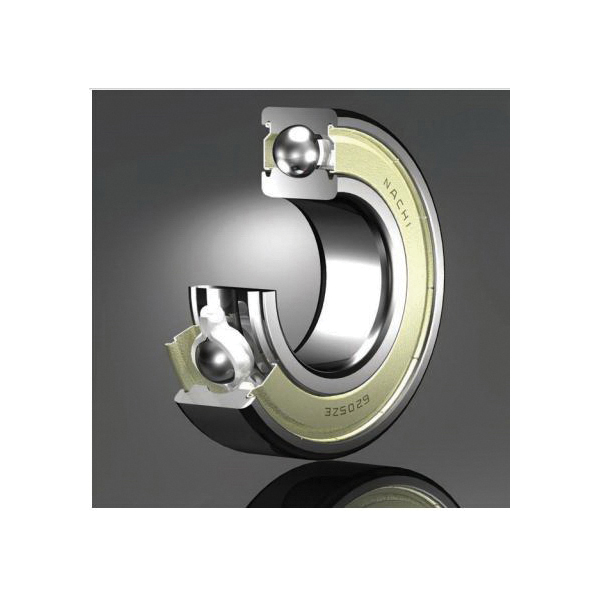

Single-row deep groove ball bearings are the most common bearing type in the world due to their versatility and performance. These bearings are available in a variety of seal, shield and snap-ring arrangements. Bearings with seals or shields are standardized and already contain the proper amount of grease. Open bearings will require lubrication. These bearings can sustain radial and/or axial loads and because of their simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation.

NACHI Deep Groove Ball Bearing, Series: 6000, 40 mm Bore, 68 mm OD, 1 Rows, 15 mm Width, Double Shield Closure, 16800 N Dynamic/11500 N Static Load, Steel Bearing, Stamped Steel Cage, 10000 rpm Grease/12000 rpm Oil Maximum, 250 deg F

• Excellent high speed capability
• Good radial load capacity
• Good axial load capacity in both directions
• Low torque requirements during startup and operation
• Low noise
• Little/no maintenance required
• Longer life - adopted NACHI original seal design to prevent contamination and grease leakage, contains special grease for wider temperature ranges and longer life
• Smooth and quiet operation - the precision level of our bearing components has been enhanced to ensure smooth and quiet operation
• Internal clearance

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NACHI_16004C3_Catalog.pdf
• Owners/User Man... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/NACHI_16004C3_User_Manual.pdf
