Browning® 1077932 SK1-5/8
Send NoImagePrint
  1. pin-int

Browning®
1077932

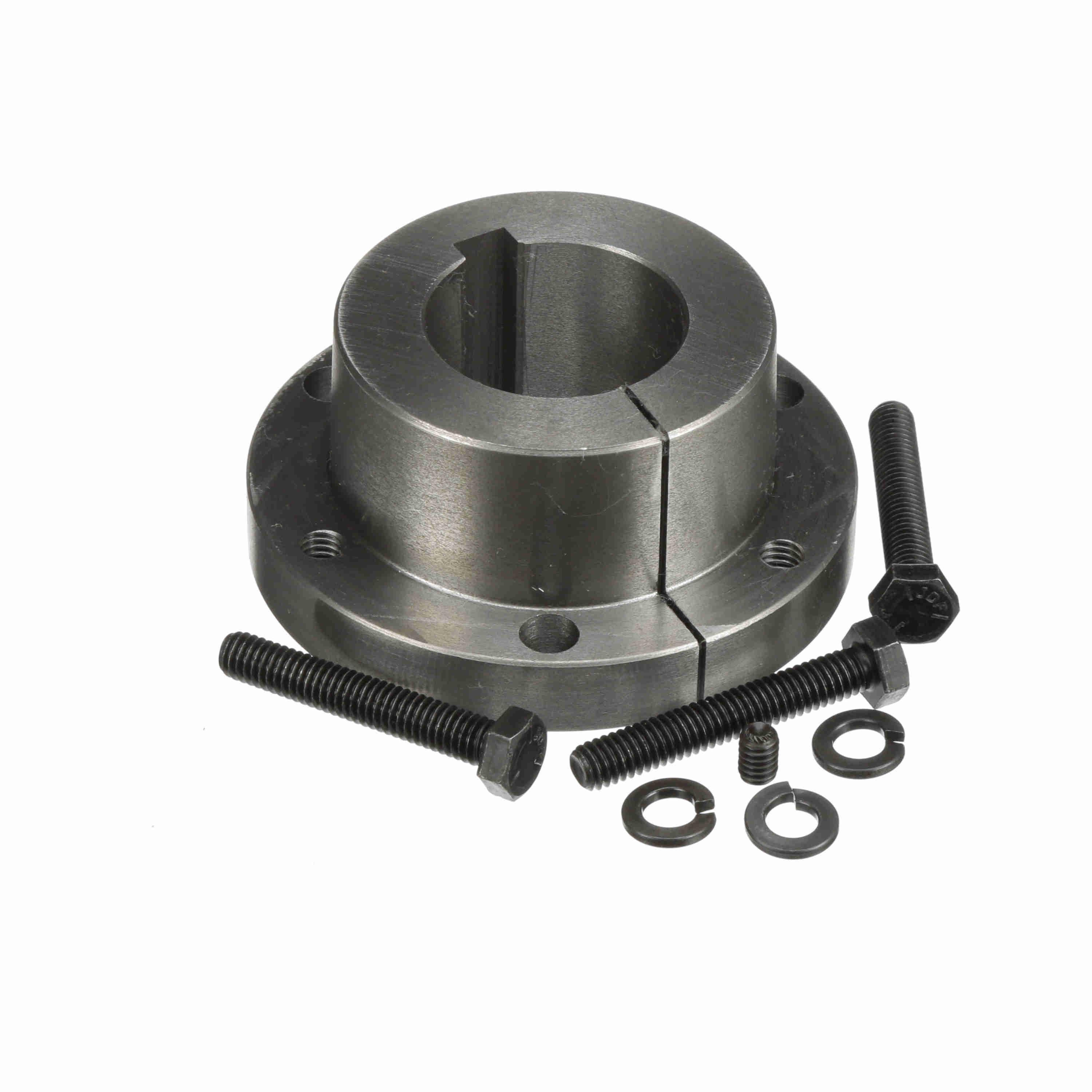

Browning® 1077932 QD Bushing, 1-5/8 in Dia Bore, 2-13/16 in Dia Barrel, 3-7/8 in Dia Flange, 1-3/4 in OAL, Ductile Iron

  • Manufacturer: Regal Rexnord
  • Brand: Browning®
  • BSC Item#: SK1-5/8
  • MPN: 1077932
  • UPC: 662289395767
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Browning® QD Bushing, 1-5/8 in Bore Dia, 2-13/16 in Barrel Dia, 3-5/16 in Bolt Circle, 3-7/8 in Flange Dia, 9/16 in Flange Thickness, 3 Bolt Holes, 5/16-18 x 2 in Screw, 7000 in-lb, For Use With: Browning® Sheaves, Sprockets and Pulleys, 1-3/4 in Overall Length, 3/8 x 3/16 in Keyway, Ductile Iron

  • Conventional mounting
  • 3/4 in/ft Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
  • Reverse mounting ability - This bushing system allows for mounting on either side of the product to allow for a more flush view of the product face
  • pdf Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_1074426_Installation_Manual.pdf
Application      :      Aggregate and Cement, Agriculture, HVAC, Minerals and Mining, Packaging Machinery, Industries and Unit Handling
