FAG

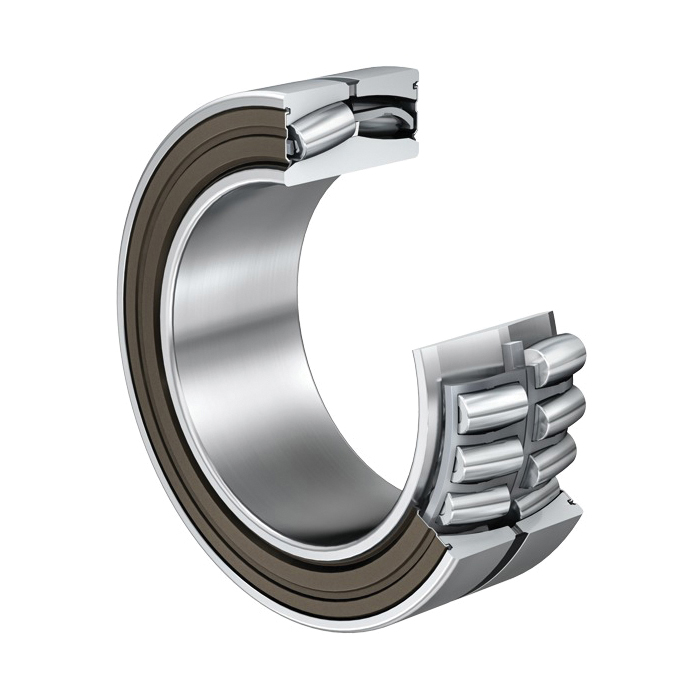

WS22210-E1-XL-2RSR

Spherical roller bearings are a special rolling bearing design whose inner ring runs inside the outer ring on two rows of rollers. The bearings have an angular adjustment of up to 2 deg and are not only designed for high load carrying capacity but can also compensate misalignments.

FAG Spherical Roller Bearing, Cylindrical Bore, Series: 222-E1, 50 mm Bore, 90 mm OD, 2 Rows, 28 mm Width, Double Seal Closure, 109 kN Load, NBR Seal, Sheet Steel Cage, 2440 rpm Maximum, -40 to 100 deg C

• Spherical roller bearings are suitable where rearing arrangements are subjected to high and very high radial loads
• Relatively high axial loads occur on one or both sides, in addition to high radial forces
• Dynamic or static misalignments of the shaft relative to the housing, or deflections of the shaft, must be freely compensated by the bearing
• High shock type loads must be supported dynamically
• Locating bearings with a very high load carrying capacity are required
• Two sheet steel cages, surface hardened or coated, guidance on outer ring
• X-life design
• Lip seals on both sides with sheet steel reinforcement, made from nitrile rubber
• Grease fill level 25% to 40%, filled with high pressure grease
• Without central rib on inner ring
• 109 kN dynamic/107 kN static

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/FAG_22317E1XL_Catalog.pdf
