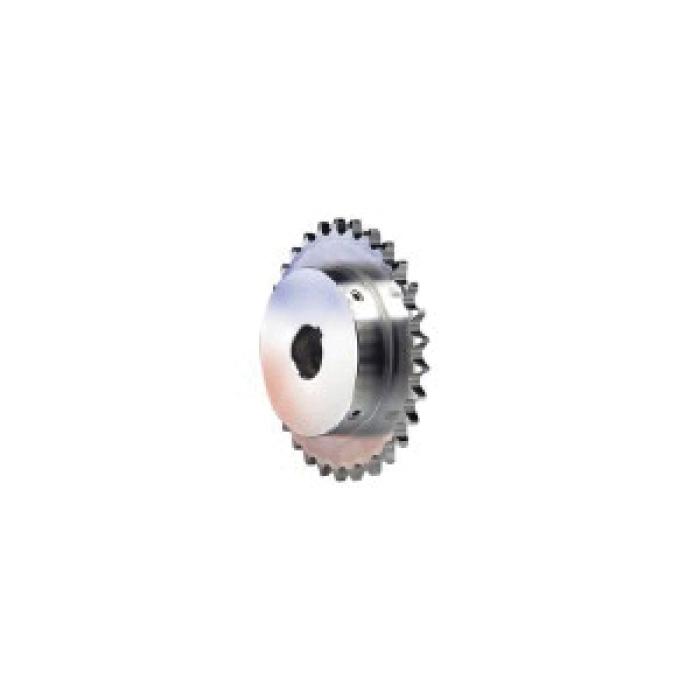

Browning® 1885102 Single Strand Finished Bore Type 1 Roller Chain Sprocket With Hardened Teeth and Keyway, 2-3/16 in Dia Bore, 8.2 in OD, #80 Chain, 24 Teeth, 1 in Pitch, Steel

Manufacturer: Regal Rexnord
Brand: Browning®
BSC Item#: H80B24-2-3/16
MPN: 1885102
UPC: 662289988716
CPN:
Min. Order Qty: 1
Qty. Interval: 1

Availability:

Call for Availability

Sold As: 1/PK
Login to see price
Add To Cart
My List
Add / Remove CPN

DESCRIPTION
SPECIFICATIONS
FEATURES
Documents
ADDITIONAL INFO

Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.

Browning® Roller Chain Sprocket, Single Strand Finished Bore Type 1, 2-3/16 in Bore, 8.2 in OD, #80 Chain, 24 Teeth, 7.661 in Pitch Diameter, 4.266 in Diameter Hub, 1-3/4 in Length Through Bore, Steel

Type	:	Single Strand Finished Bore Type 1
Bore Diameter	:	2-3/16 in
Outside Diameter	:	8.2 in
Chain Size	:	#80
Number of Teeth	:	24
Pitch Diameter	:	7.661 in
Hub Diameter	:	4.266 in
Length Through Bore	:	1-3/4 in
Material	:	Steel

Furnished with standard keyway on centerline of tooth and hollow head setscrew over keyway
In-stock hardened sprockets are warranted to last at least twice as long as the standard (unhardened) mild steel sprockets they replace
For use with 1 in pitch ANSI chain
Additional setscrew at 90 deg to keyway
