Browning®
1156090

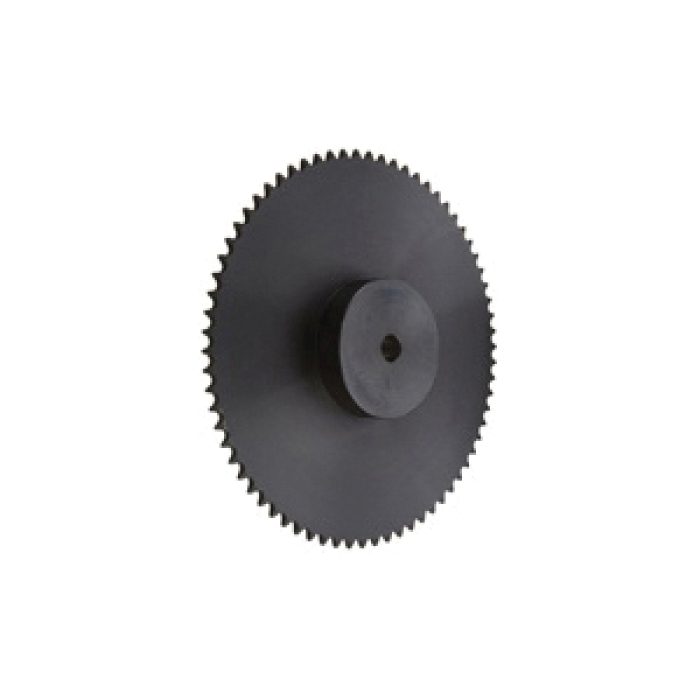

Browning® 1156090 Single Strand Minimum Bore Type B Roller Chain Sprocket, 3/4 in Dia Bore, 13.03 in OD, #41 Chain, 80 Teeth, Steel

  • Manufacturer: Regal Rexnord
  • Brand: Browning®
  • BSC Item#: 41B80
  • MPN: 1156090
  • UPC: 662289498239
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Browning®Type B minimum bore sprockets are offered in single, double and triple strands. Offerings include 25 to 200 pitch range. Minimum bore sprockets are available in bore ranges from 1/4 to 8-3/8 in.

Browning® Roller Chain Sprocket, Single Strand Minimum Bore Type B, 3/4 in Bore Dia, 13.03 in Outside Dia, #41 Chain, 80 Teeth, 12.736 in, 4 in Hub Dia, 1-3/16 in Length Through Bore, Steel

Type      :      Single Strand Minimum Bore Type B
Bore Diameter      :      3/4 in
Outside Diameter      :      13.03 in
Chain Size      :      #41
Number of Teeth      :      80
Pitch Diameter      :      12.736 in
Hub Diameter      :      4 in
Length Through Bore      :      1-3/16 in
Material      :      Steel
  • Larger hub diameter allows larger bore capacity
  • Lasts longer than sprockets made from low carbon steel
  • Maximum bore shown will accommodate standard keyways and setscrews over keyway
  • Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway
  • Hub projection on one side
  • High quality, high carbon steel
  • For use with 1/2 in pitch ANSI chain
  • pdf Specification S... https://www.bsc-ind.com//ASSETS/DOCUMENTS/ITEMS/EN/Browning_41A15_Specification_Sheet.pdf
  • pdf Warranty Inform... https://www.bsc-ind.com//ASSETS/DOCUMENTS/ITEMS/EN/Browning_A175382_Warranty.pdf
Application      :      Aggregate, Cement, Agriculture, Forestry, Minerals, Mining, Pulp and Paper Industries
