Martin S1217

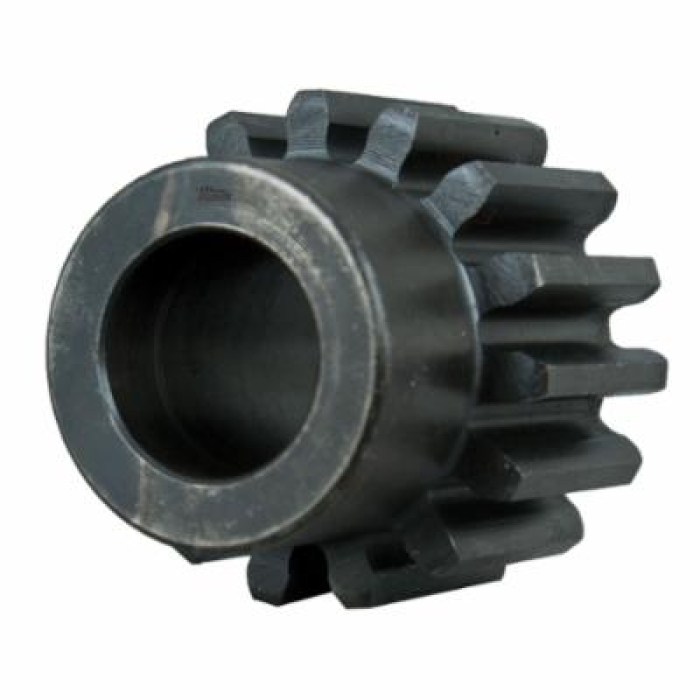

Martin S1217 External Tooth Reborable Stock Spur Gear, 12 Diametral Pitch, 14.5 deg Pressure Angle, 3/4 in W Face, 17 Teeth, 1.413 in Dia Pitch, 5/8 in Dia Bore, Steel
- Manufacturer: Martin Sprocket & Gear
- Brand: Martin
- BSC Item#: S1217 MART
- MPN: S1217
- UPC: 697950056760
- Min. Order Qty: 1
- Qty. Interval: 1 Availability: Call for Availability
-
Login to see price
Martin stock spur gears are available in five different styles. Steel gears are furnished in plain style and plain style with hub. Cast gears are furnished, plain with hub, web with lightening holes, and spoke. Cast gears are machined on all operating surfaces. Martin cast gears are cast with a larger hub to provide extra strength and to allow for larger bores. Spur gears are stocked in both 14-1/2 and 20 deg pressure angles.
Martin Stock Spur Gear, External Tooth Reborable, 5/8 in Bore Dia, 1.58 in Outside Dia, 17 Teeth, 12 Diametral Pitch, 1.413 in, 3/4 in Face Width, Type B, 1-1/8 in Hub Dia, 1/2 in Hub Projection, 1-1/4 in Overall Length, 14.5 deg Pressure Angle, Steel
| Type | : | External Tooth Reborable |
| Bore Diameter | : | 5/8 in |
| Outside Diameter | : | 1.58 in |
| Number of Teeth | : | 17 |
| Diametral Pitch | : | 12 |
| Pitch Diameter | : | 1.413 in |
| Face Width | : | 3/4 in |
| Hub Type | : | Type B |
| Hub Diameter | : | 1-1/8 in |
| Hub Projection | : | 1/2 in |
| Overall Length | : | 1-1/4 in |
| Pressure Angle | : | 14.5 deg |
| Material | : | Steel |
