Martin
9S424-R

The letter "S" indicates screw conveyor with bulttweld flighting. The figures to the left of the letters indicate the nominal outside diameter of the conveyor in inches. The first figure following the letters is twice the diameter of the coupling in 1/64 in. Right hand flight helix wraps around the pipe in a clockwise direction.

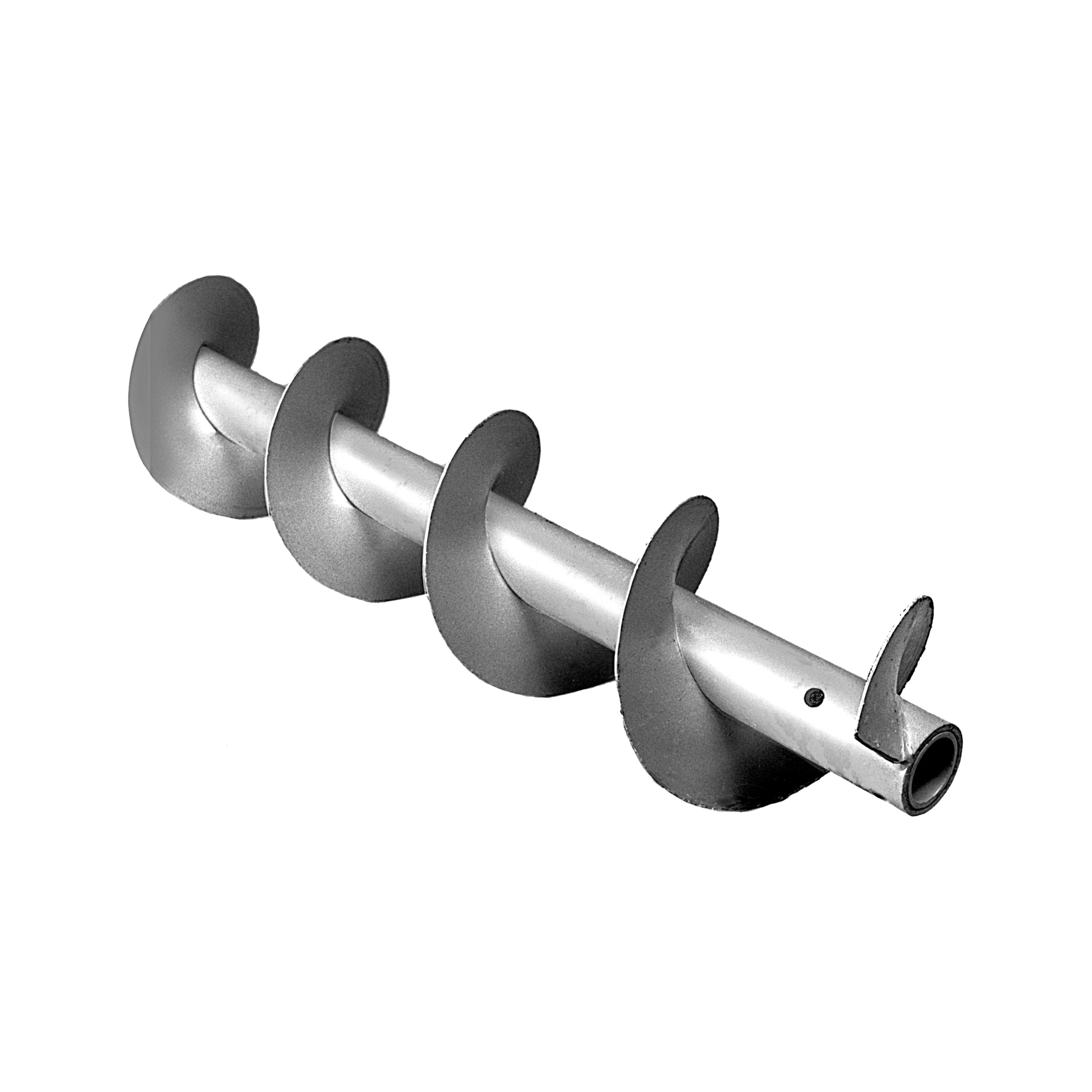

Martin Conveyor Screw, Sectional Screw, 9 in Dia, 118 in Length, Steel, 9 in Pitch, Right Hand Flight Type

• Can be manufactured from a wide range of materials
• Pitch can be varied on a MTO basis

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_CSFP2_Catalog.pdf
• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_4CTF16_5_Manual.pdf
