Browning®
767685

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric, or BOA concentric locking collar. The contact seal, with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction. Depending on your preference, these bearings are available in inch and metric bore with a wide variety of cast iron, stamped steel or rubber mount housings or specific industry solutions as illustrated on the pages to follow.

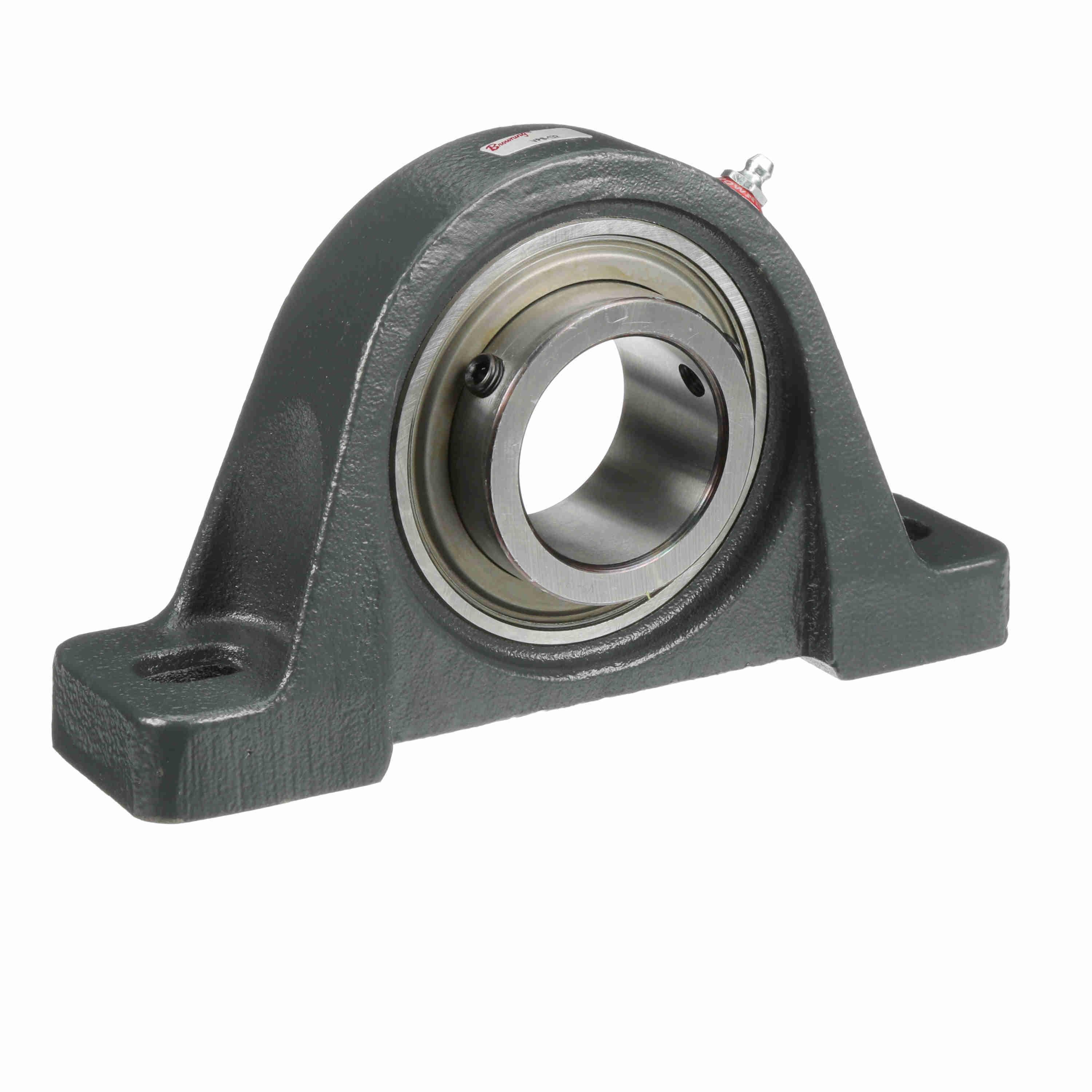

Browning® Pillow Block Ball Bearing, Intermediate Duty, Series: VPS 100, 2 in Bore, 5-7/8 to 6-1/2 in Bolt Center-to-Center Length, 2-1/4 in Base to Bore Centerline, 8 in Overall Length, 4-9/16 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2-3/16 in Base Width, Set Screw Locking Device, Single Lip Seal, Non-Expansion (Fixed) Expansion, 9752 lb Dynamic/6601 lb Static Load, -20 to 200 deg F, 2000 rpm Maximum, Cast Iron, Gray Painted

• 120 deg spaced, balanced 3-point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
• The rugged base design provides an excellent mounting foundation, this is integral to prevent sheet metal "buckling"
• Positive contact molded nitrile rubber contact seal
• An anti-rotation rivet prevents outer ring creep or rotation, within the housing
• Spherical outer diameter bearing insert
• 52100 steel insert
• Alemite fitting lubrication
• Nylon retainer
• Powder coat epoxy cast iron housing_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Single lip contact seal
