Warner Linear®
M1-D024-0100-A04-LN

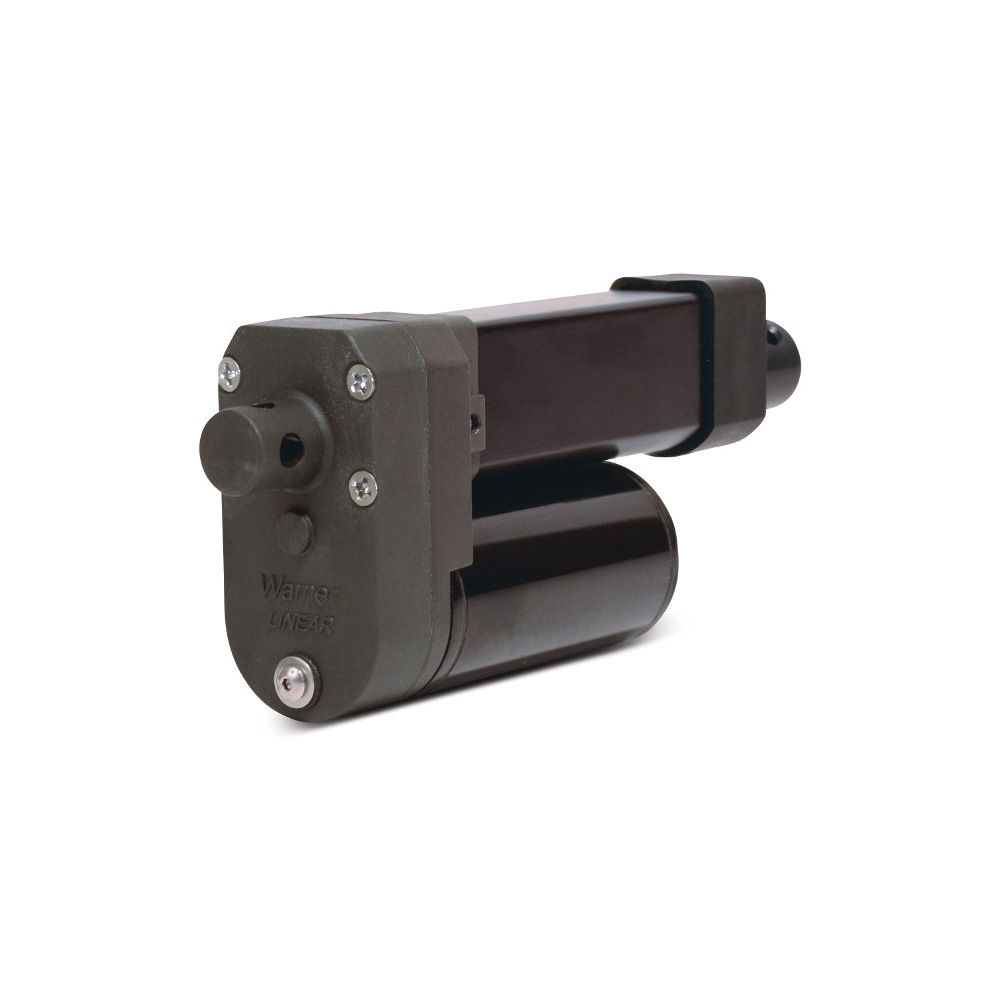

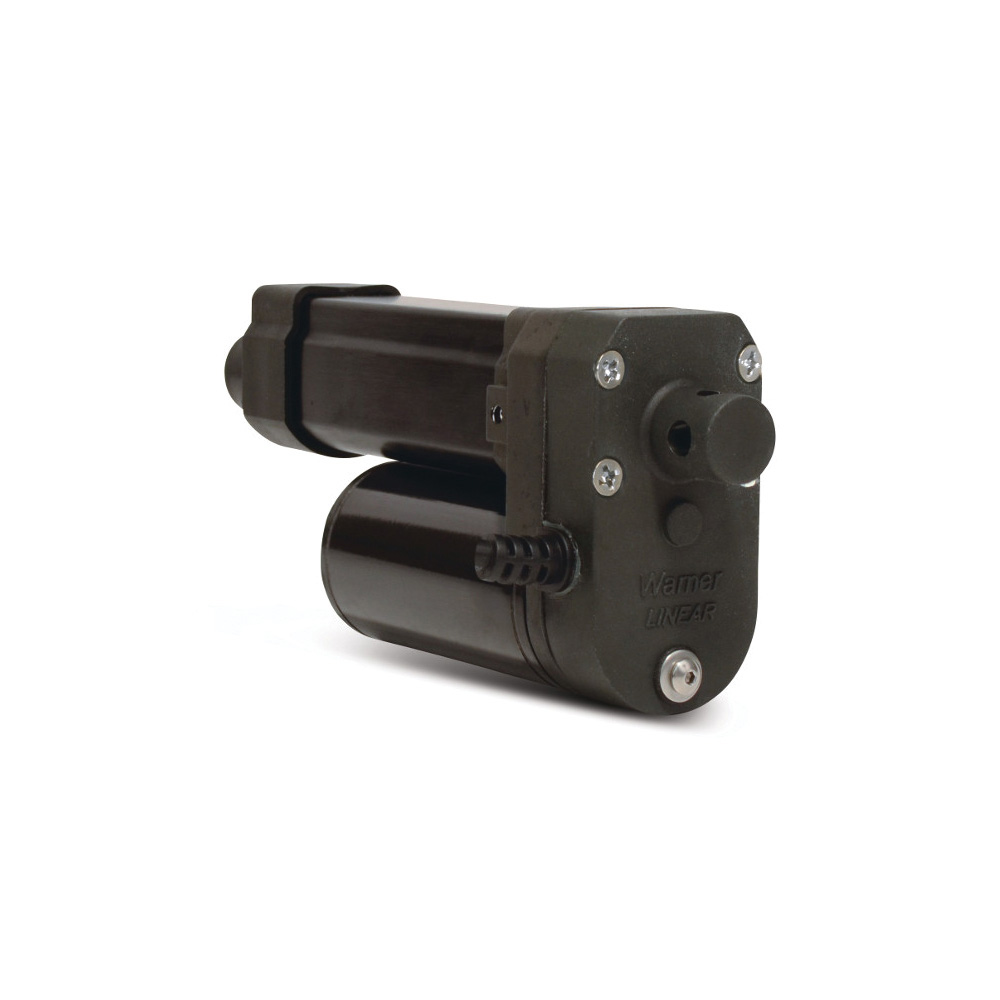

Compact, completely self-contained and sealed to allow for use in small spaces without sacrificing power or capability. The aluminum zinc alloy housing resists corrosion and provides protection from dirt, dust and humidity. This M-track actuator offers a load capacity of 100 lb (445 N) and a static load capacity of 300 lb (135 N), with a stroke length of 4 in (100 mm). It does not come standard with a potentiometer, but a linear membrane potentiometer is optional.

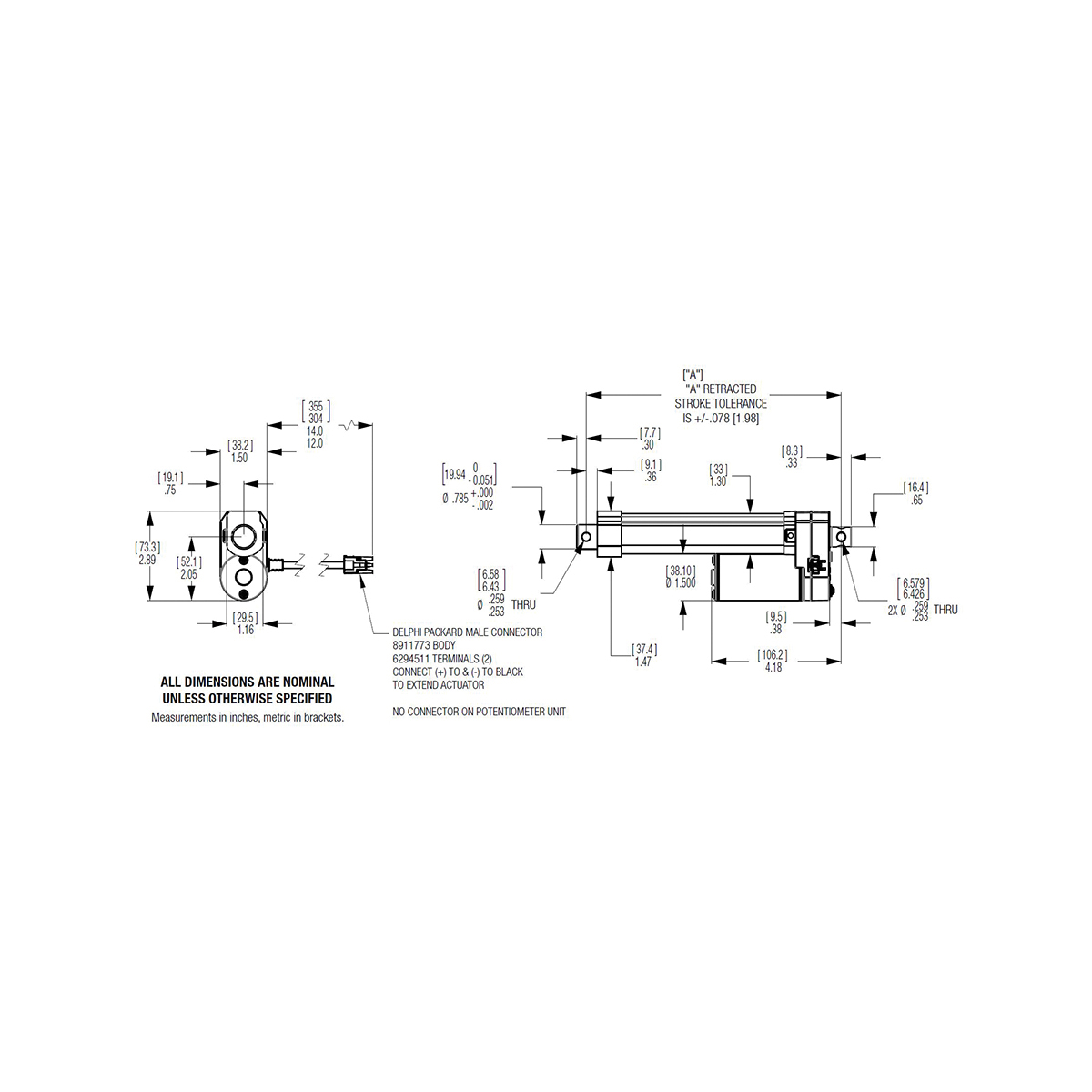

Warner Linear® Electric Linear Actuator, Light Duty, Series: M-Track 1, 445 N Dynamic/135 N Static Load, 100 mm Maximum Stroke, 11 mm/s Maximum, 25% Maximum Duty Cycle, 24 VDC, 2 A, ACME Screw Drive, 8.23 in Retracted Length, 8.86 in L x 1.5 in W x 2.89 in H Dimensions

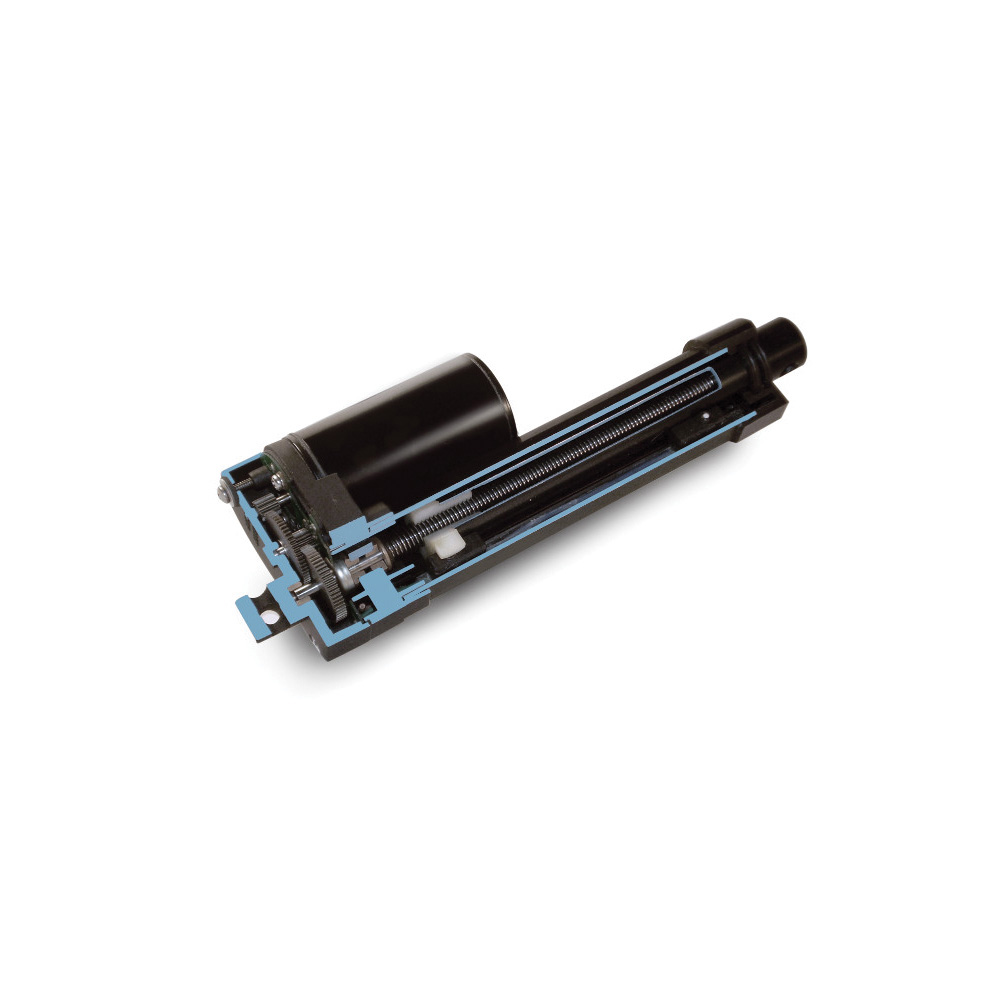

• An ACME screw drive delivers up to 165 lb of force at a min extension rate of 1/4 in per sec
• The anodized aluminum alloy housing resists corrosion and provides protection from dirt, dust and humidity
• Internal limit switches automatically shut off the unit at end of stroke
• Optional potentiometer can provide positional location feedback
• IP69K static, IP65 dynamic load
• Temporary immersion with protective boot
• Rod is non rotating during operation, can be rotated for mounting purposes
• -26 to 65 deg C operating temperature
• Without potentiometer
