Gates® Power Transmission
5L520

Engineered with all the qualities of a great belt, including flexibility, durability and resistance to contaminants. It includes a thin profile, designed for small-diameter sheaves and a lower cord positioning to improve belt performance on light-duty belt drives and in your backside idler applications.

Gates® Power Transmission Truflex® V-Belt, Light Duty Banded, Series: 8400, 5L Section, 21/32 in Top Width, 52 in Outside Length, 3/8 in Thickness, 1 Rib, 4.775 in Diameter Minimum Pulley, EPDM, Flex-Bonded Polyester Reinforced

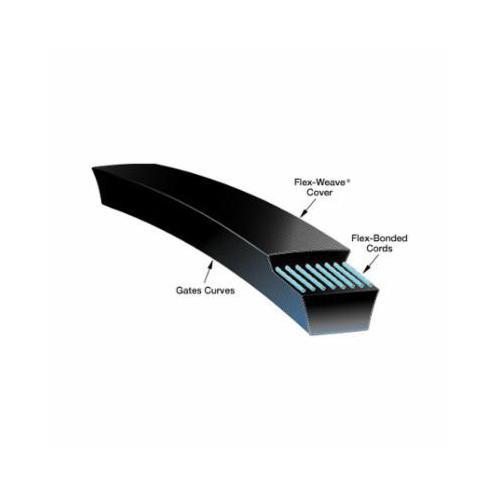

• Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
• The Flex-Weave® cover is constructed for longer cover life, providing extended protection to the core of the belt from oil, dirt and heat
• Gates® curves provide proper cord support and full contact with the sheave groove for uniform loading, uniform wear and increased belt life
• Truflex® belts feature superior length stability for minimal take up requirements

• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Gates_84003520_Specification_Sheet.pdf
• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Gates_92406179_Catalog.pdf
• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Gates_92406179_Manual.pdf
