LEESON®
110715.00

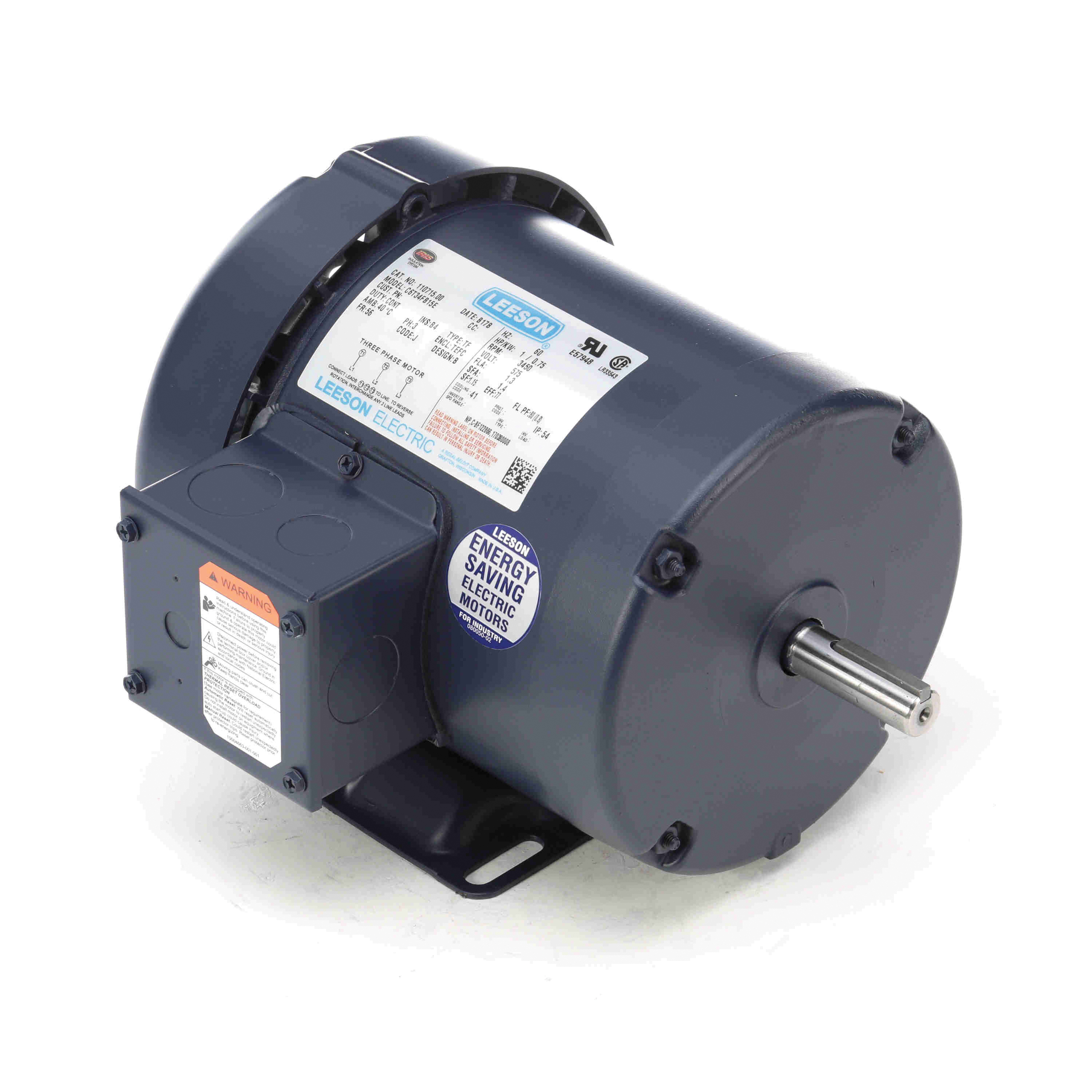

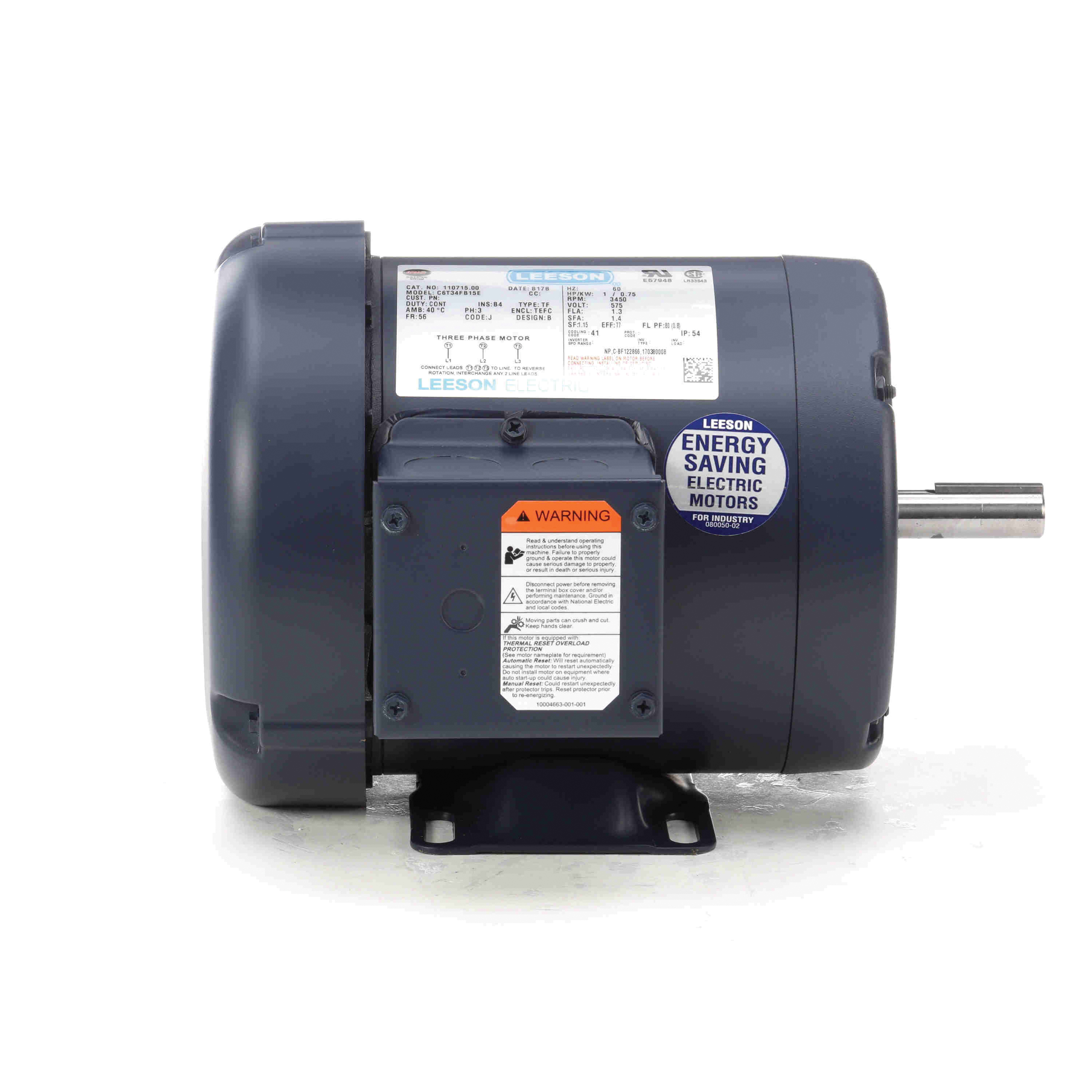

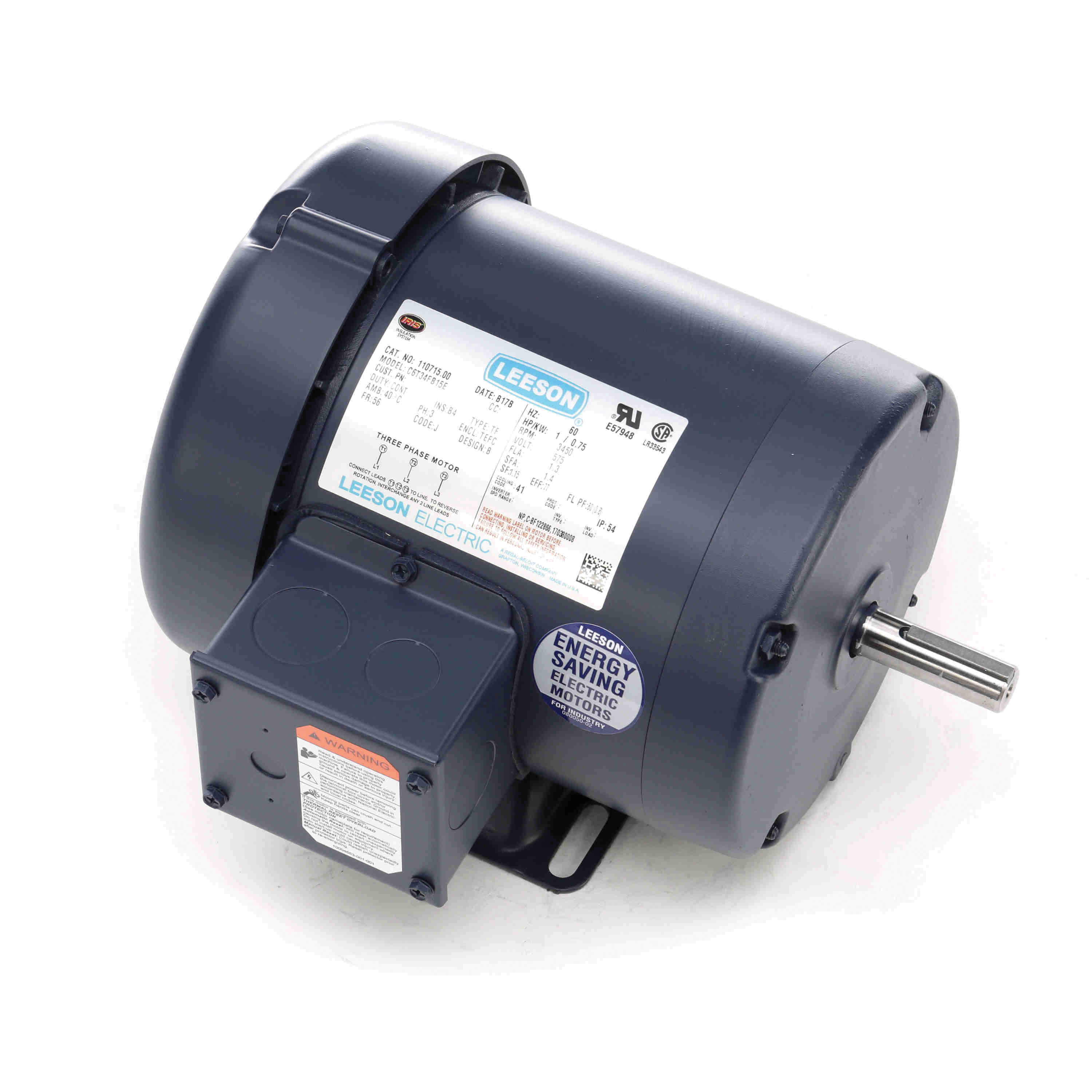

LEESON® 110715.00 2-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 1 hp, 575 VAC, 60 Hz, 3 ph Phase, 56 Frame, 3450 rpm Speed, Rigid Base Mount

Manufacturer: Regal Rexnord
Brand: LEESON®
BSC Item#: 110715.00 LEES
MPN: 110715.00
UPC: 691720009192
CPN:
Min. Order Qty: 1
Qty. Interval: 1

Availability:

Call for Availability

Login to see price
Add To Cart
My List
Add / Remove CPN

DESCRIPTION
FEATURES
Documents
ADDITIONAL INFO

LEESON® AC Motor, 2-Pole Continuous Duty, Compressor Motors, Fan and Blower Motors, General Purpose AC Motors Application, 1 hp, 575 VAC, 1.3 A, 60 Hz Frequency, 3 ph ph, 3450 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56 Frame, 0.63 in Dia x 1.88 in L Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 1.5 ft-lb Torque, Rigid Base Mounting, 40 deg C, Insulation Class: Class B, Rolled Steel, 10:1 Variable Torque Speed, 10.48 in L Dimensions

Premium efficient ratings
Inverter rated
Shielded ball bearings for direct coupled applications
Dynamically balanced rotors
Torques exceed NEMA performance standards
Squirrel cage induction run

Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leeson_11071500_Specification_Sheet.pdf
Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leeson_9201100_Catalog.pdf
Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Leeson_9201100_Warranty.pdf
Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Rollway_3203ZZC3_Manual.pdf
