Sealmaster®
704969

Sealmaster® gold ER bearings feature a cylindrical OD and snap ring for easy installation in a roll assembly. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction.

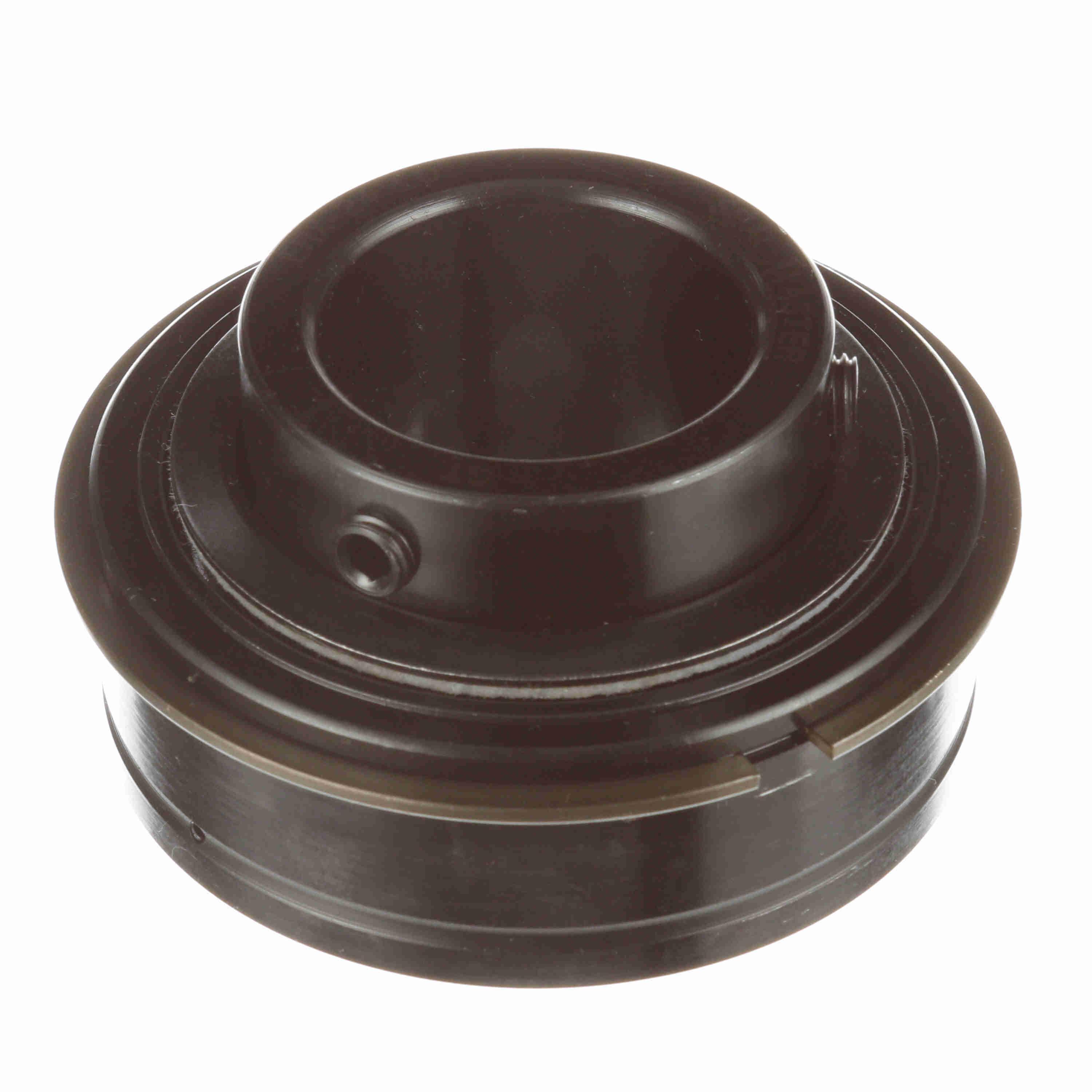

Sealmaster® Ball Bearing Insert, Standard Duty Straight Bore, Series: ERX LO, 1-1/2 in Bore, 3.15 in OD, 1.938 in Width, 7340 lb Dynamic/4467 lb Static Load, Steel Bearing, Felt Seal, Plastic Cage, 3300 rpm Maximum, 200 deg F, Black Oxide Coated

• Single setscrew locking
• Outer race with tapered lands
• Land riding retainer
• Felt seal cut down to reduce drag
• Provides excellent barrier that works to retain grease and acts as a filter to reduce the ingress of debris contaminants
• Features a channeling grease that reduces drag while lubricating the bearing
• ER style cylindrical OD bearing with snap and with black oxided bearing rings_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Extra low drag seal cut down felt labyrinth seal and flinger_x005f Features a channeling grease that reduces drag while lubricating the bearing_x005f Nylon retainer to reduce overall drag

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sealmaster_700310_Catalog.pdf
