Brewer Universal Drive Tensioner GSM-3/4-10 GSM-3/4-10 BREW
Send NoImagePrint
  1. pin-int

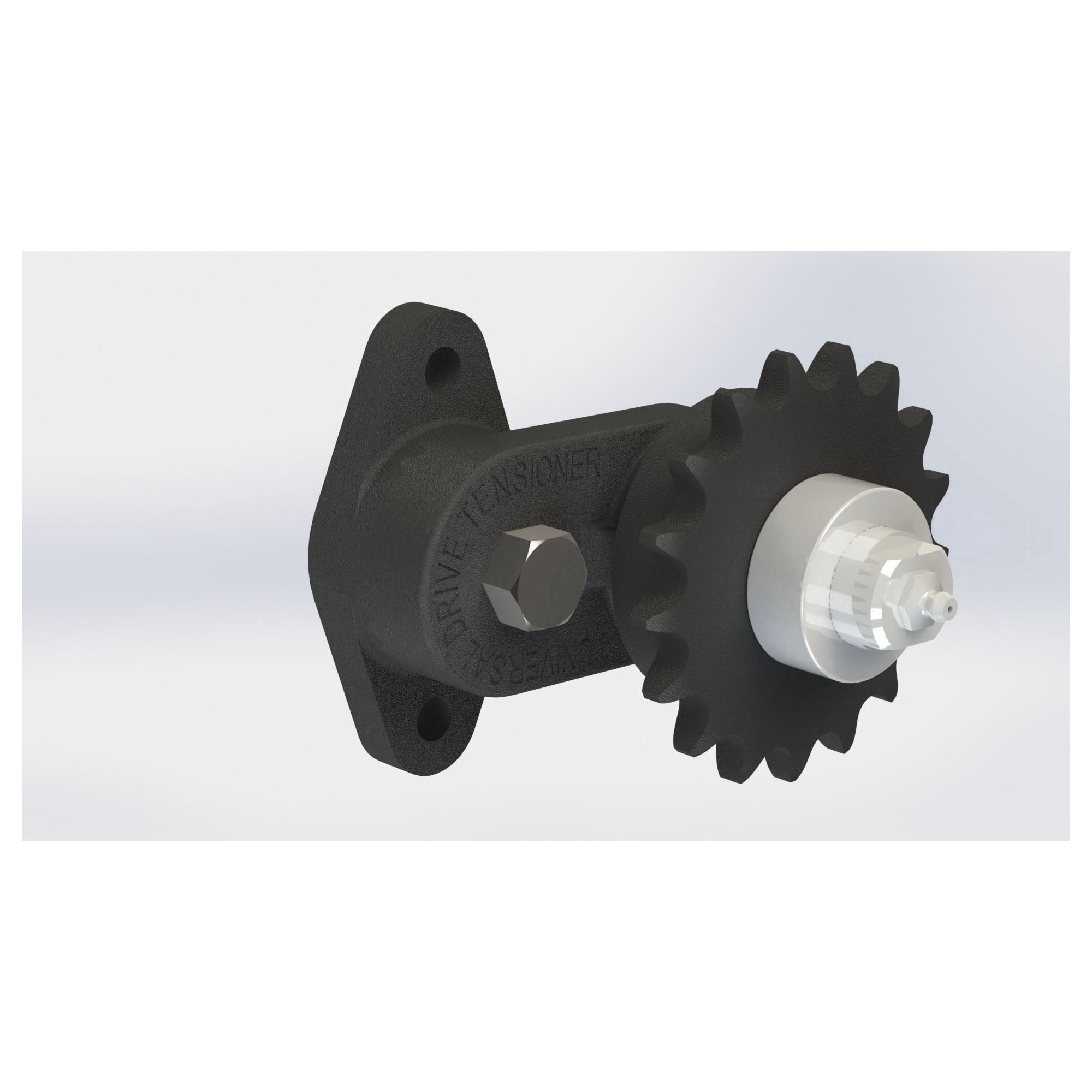

Brewer Universal Drive Tensioner
GSM-3/4-10

Brewer Universal Drive Tensioner GSM-3/4-10 GS Series Medium Base Mount Drive Tensioner, For Use With Model NO2, NO3 and NO4 1 in Dia 3/4-10 Thread Idler Shafts, 3/8 in Bolt

  • Manufacturer: Brewer Machine and Gear
  • Brand: Brewer Universal Drive Tensioner
  • BSC Item#: GSM-3/4-10 BREW
  • MPN: GSM-3/4-10
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

This particular single adjusting model incorporates the compactness of a flanged base with the versatility of a rotating arm. Both base and arm have serrated teeth to prevent slippage. As a chain or belt elongates, the arm, which rotates 360 deg, can be readjusted to restore the original tension.

Brewer Universal Drive Tensioner Drive Tensioner, Medium Base Mount, Series: GS Series, For Use With: Model NO2, NO3 and NO4 1 in Dia 3/4-10 Thread Idler Shafts, 3/8 in Bolt, 4 in L x 1-7/8 W

  • Compact flange base
  • Versatile rotating arm
  • Serrated teeth to prevent slippage
  • 3 in bolt center-to-center
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Brewer_SD_B_Catalog.pdf
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Brewer_GSL_Specification_Sheet.pdf
Application      :      For use with a wide array of sprocket and pulley idlers
