System Plast™
70205CGR/SS-EC

System Plast™mounted bearing supports are available in polyamide and Nolu® cleanmaterials. These supports are also available with either a 400 series stainless steel insert or a 52100 bearing quality chrome steel insert. They are offered in a variety of housing styles and have an optional end cap and backside shield. This makes them a good solution for wash-down applications.

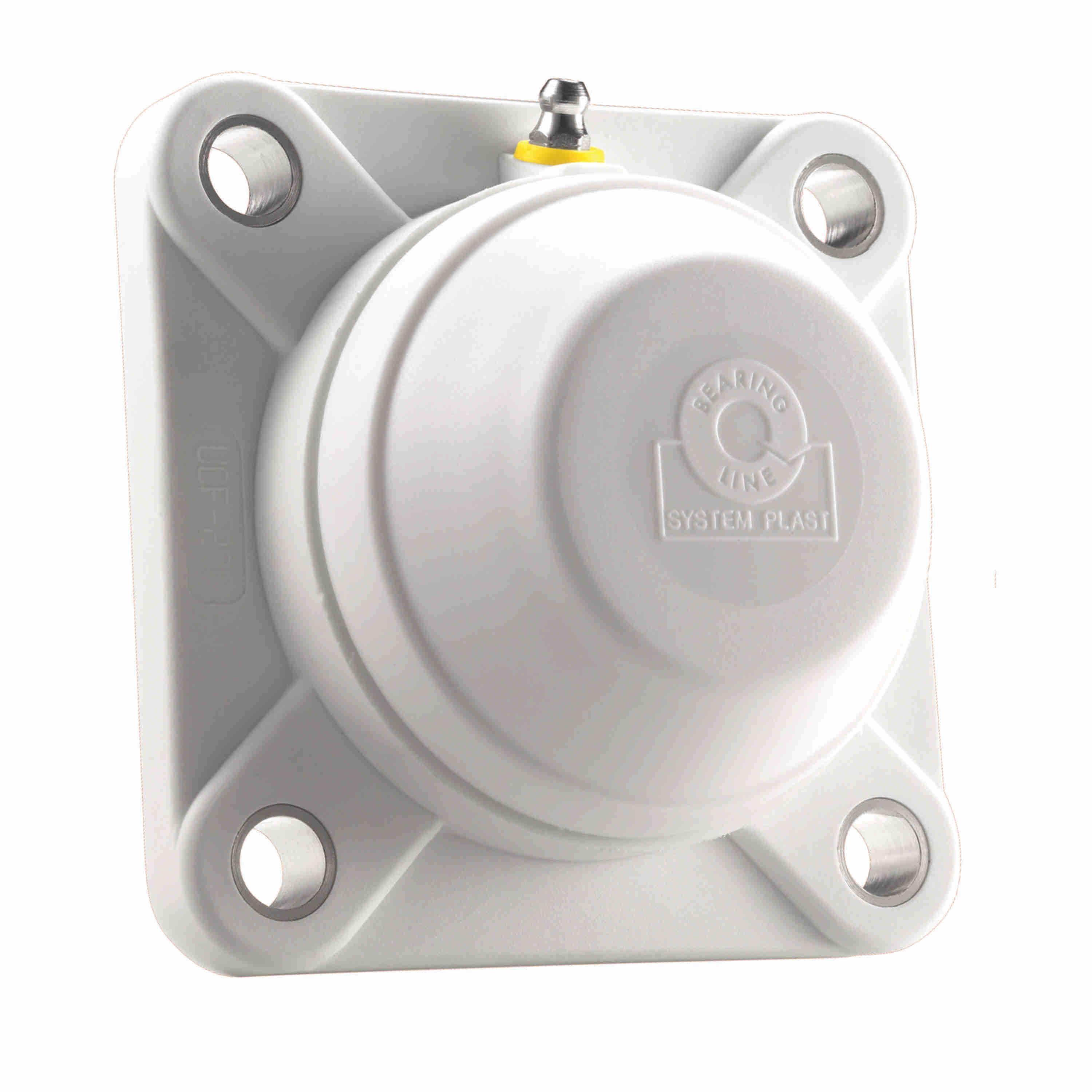

System Plast™ Flange Mount Ball Bearing Unit, Round Straight Bore Standard-Duty, Series: UCFQ 205, 1 in Bore, 2-3/4 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 3-3/4 in Overall Length/Diameter, 2-1/8 in Overall Depth, 3-3/4 in Overall Height, Set Screw Locking Device, Stainless Steel Bearing, 3500 rpm Maximum, 30 to 180 deg F, White

• Smooth surfaces robust design
• Solid construction
• Stainless lubrication fitting
• H1 food grade grease
• Nolu®-Clean antimicrobial housing
• Single lip contact seal
• External fit safety cap
• Closed end cap and back spring seal
