Browning®
1029297

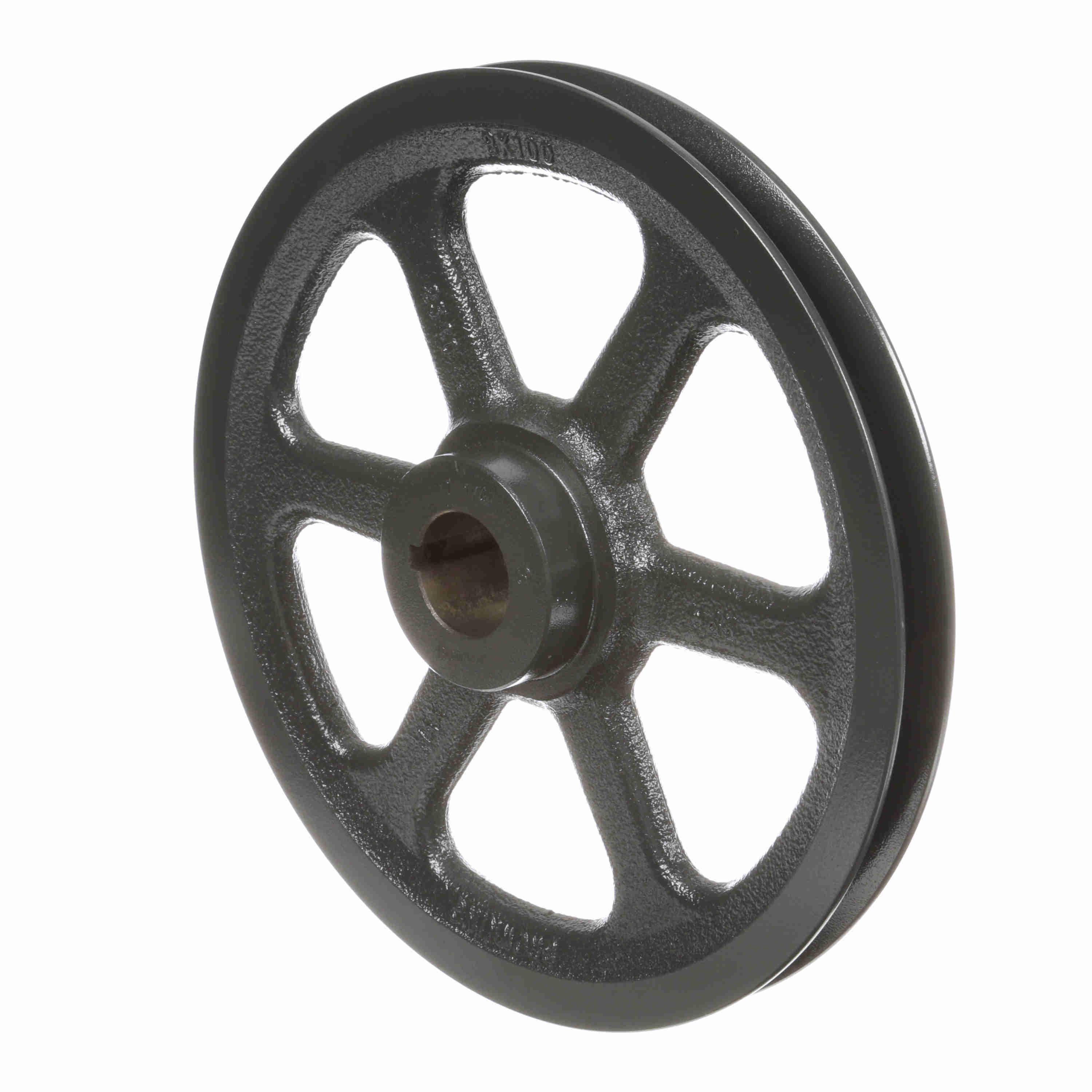

Browning® Classical Gripbelt® Single Groove Sheave, Type 3, Series: BK Series, Finished Bore, 1-1/4 in Bore Dia, 9-3/4 in Outside Dia, 9.2 in (A)/9.7 in (B), 7/8 in Face Width, 21/32 in Hub Projection, 1-17/32 in Overall Length, For Use With: 4L/A and 5L/B Cross Section Belt, Cast Iron

• External rib design provides cooling for longer belt life
• Increases wall thickness by 30%
• Increased hub diameter by 20%
• Tighter tolerances by 25%
• Twice balanced after assembly
• Tightened micro-finish on groove walls for increased belt life
• Precision balanced to provide smooth, vibration free performance
• Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
• Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
• Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
• Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
• New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_AK46HCLEARPK_Catalog.pdf
