Browning®
767352

Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.

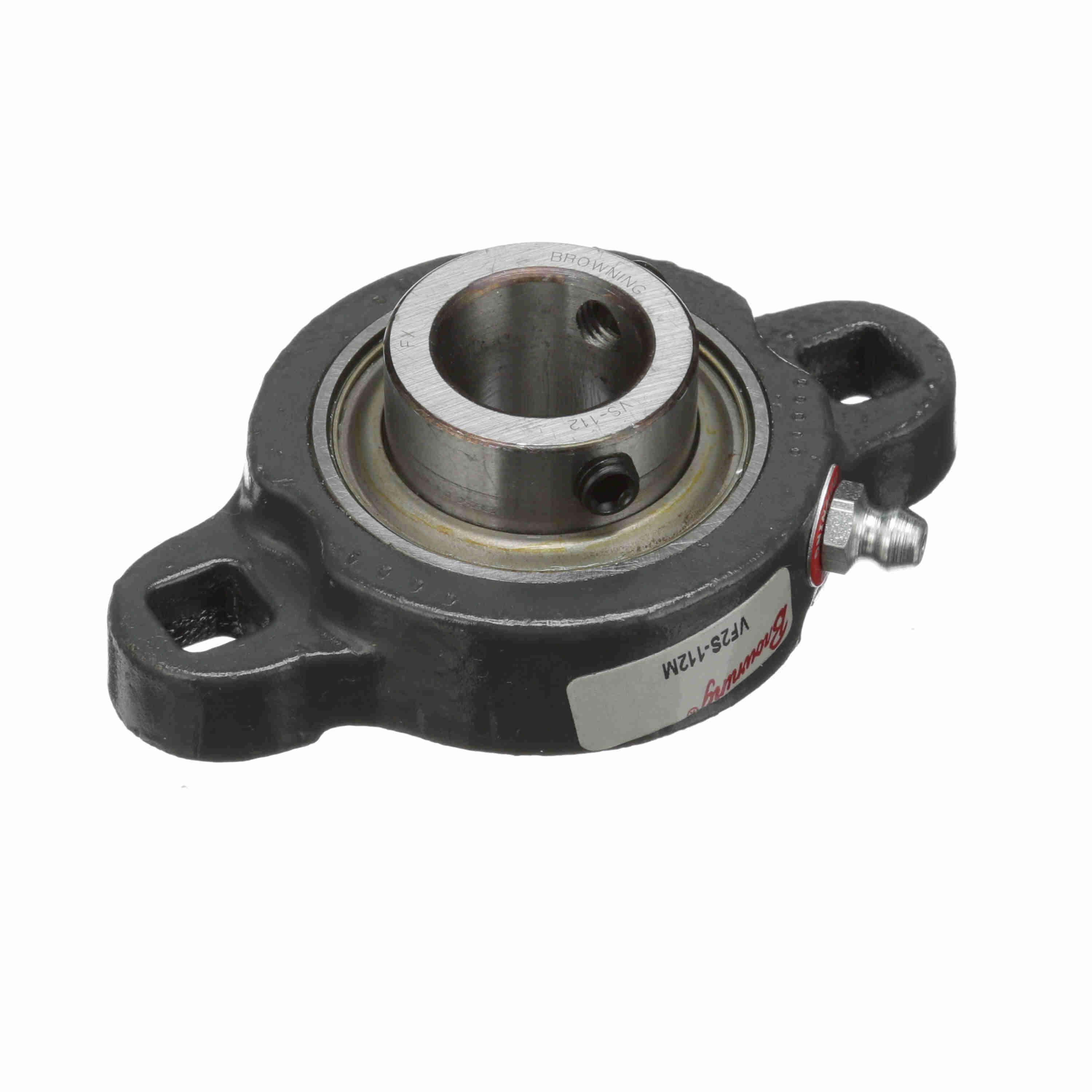

Browning® Flange Mount Ball Bearing Unit, Intermediate Duty Non-Expansion, Series: VF2S 100, 3/4 in Bore, 2-13/16 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 2-1/4 in Overall Length/Diameter, 1-7/64 in Overall Depth, 3-9/16 in Overall Height, Set Screw Locking Device, Steel Bearing, Nitrile Rubber Seal, 2611 lb Dynamic/1444 lb Static Load, 4000 rpm Maximum, -20 to 200 deg F, Gray Painted

• Single setscrew locking is 120 deg spaced, balanced three point contact minimizes inner ring distortion vibration, reduces noise and improves reliability
• An anti-rotation rivet prevents outer ring creep or rotation within the housing
• Zone hardened inner race
• NLGI #2 lithium complex grease
• 52100 steel insert
• Powder coat epoxy malleable iron housing
• Powder coat epoxy malleable iron housing_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Single lip contact seal

• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_764056_Installation_Manual.pdf
• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Browning_767737_Catalog.pdf
