Warner Electric®

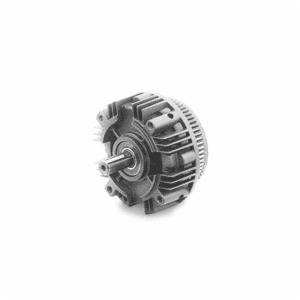

5371-270-026

Electro modules are individual clutch or brake units which are assembled together to comprise a clutch, brake or clutch/brake combination. Electro modules can be bolted directly to a NEMA C-face motor or reducer or they can be base mounted for stand alone operation. This module (5371-270-026) features a 213C/182TC, 215C/184TC NEMA frame, a voltage of 24 VDC and 95 ft-lb torque.

Warner Electric® Electro Module Input Clutch, Standard, Series: EM-210-30, 1-1/8 in Bore, 9-1/4 in OD, 6.891 in Overall Length, 95 ft-lb Torque, 24 VDC, 3600 rpm Maximum, C-Face Mounting, Open Enclosure

• Modular design flexibility
• Outstanding controllability
• Fast cycling
• Smooth starts and stops
• Accurate, bidirectional and consistent performance
• Complete control capability
• Spring return

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Warner_Electric_5370270201_Catalog.pdf
• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Warner_Electric_5370270201_Manual.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Warner_Electric_5370270201_Specification_Sheet.pdf
• Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Warner_Electric_5371270024_Line_Drawing.pdf
