Timken®
E-TU-TRB-1 11/16

Timken® Type E mounted tapered roller bearings (housed units) feature industry leading premium tapered roller bearings, high performance triple-barrier seals, e-coated housings and locking collars. Timken® tapered roller bearings have the capacity to manage both radial and axial loads and are engineered to provide the greatest durability in the most compact space.

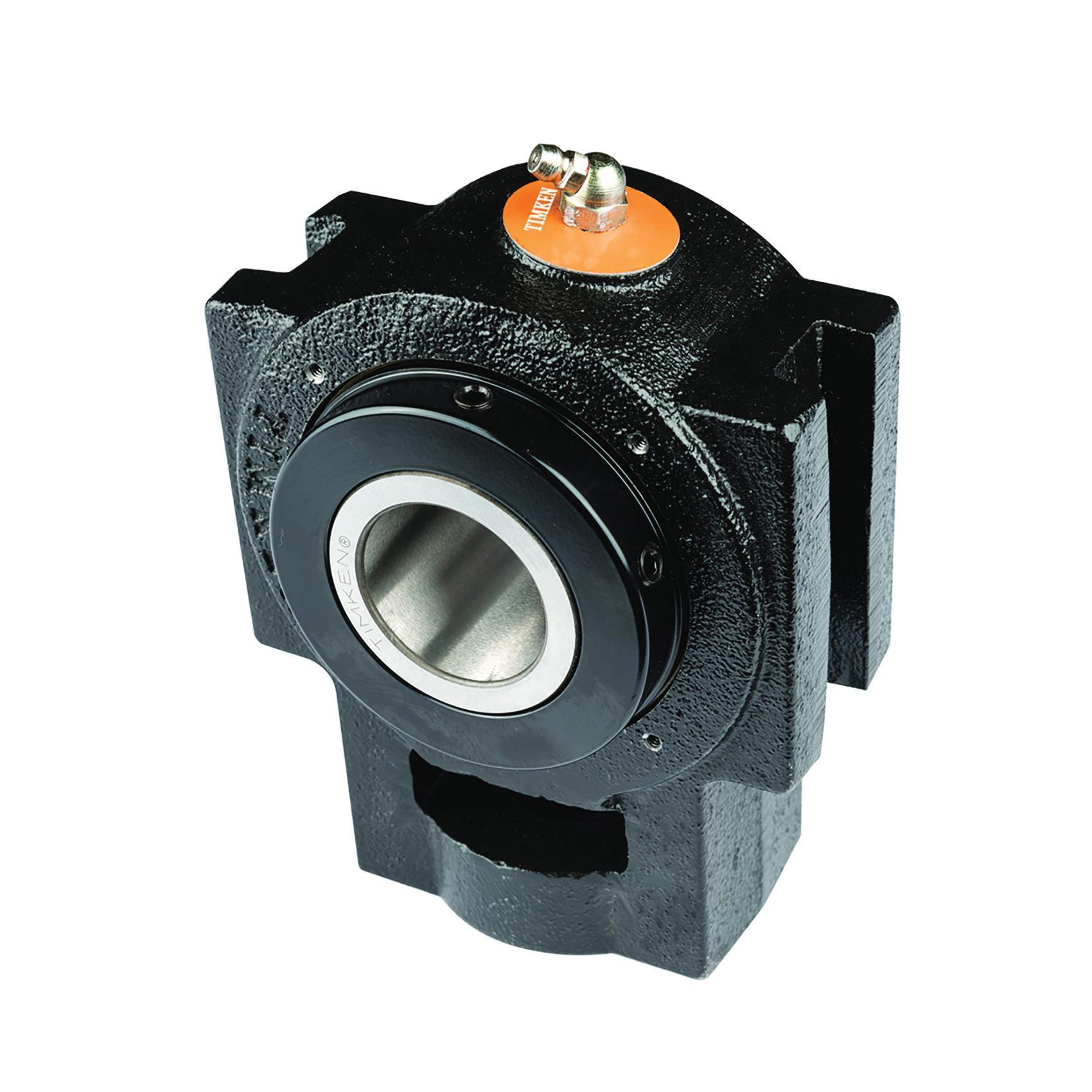

Timken®, E-TU-TRB-1 11/16, Take-Up Tapered Roller Bearing Unit, Heavy Duty Non-Expansion Type E, Series: E-TU-TRB, 1-11/16 in Bore, 6 in Length, 3-3/8 in Width, 4-3/4 in Height, 7860 lb Dynamic/33000 lb Static Load, Steel Bearing, -54 to 250 deg F, E-Coated

• 47% increase in bearing life over the leading competitor
• Improved lubrication performance
• Reduced internal stresses
• Enhanced performance
• 12% higher load capacity than the leading competitor
• Optimized bearing profiles
• Improved surface textures
• Super-clean and high-alloy bearing steel
• Cast iron housing
• Industry leading high performance triple-barrier seals result in improved grease retention and are more effective at preventing water and mud/slurry ingress
• Rotating collar acts as an initial flinger and provides an additional barrier
• Electric deposition coatings on housings and collars provide superior corrosion resistance
• 2 locking set screw collar with nylon patch greatly reduce set screw back out, even in the most severe applications
• High performance Timken® bearings provide the highest rating and bearing life
• Wide slot mounting
• Round bore, double row
• Triple barrier seal

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Timken_E_TU_TRB_60MM_Catalog.pdf
