Martin WH16D WH16D MART
Send NoImagePrint
  1. pin-int

Martin
WH16D

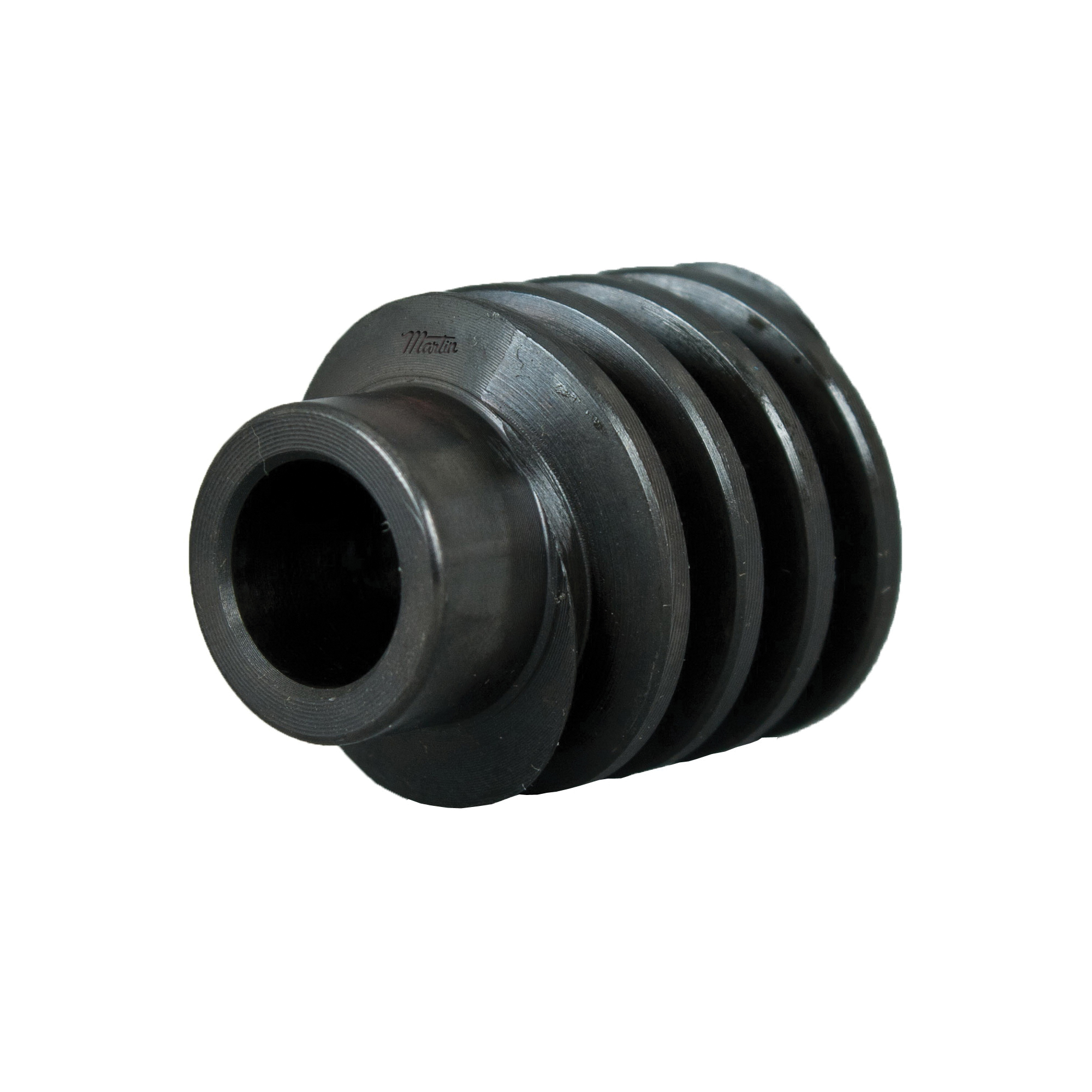

Martin WH16D Reborable Helix Angle Worm, 16 Diametral Pitch, 14.5 deg Pressure Angle, 2 Threads, Right Hand Rotation, 5/8 in Dia Pitch, 1/4 in Dia Bore, 1 in W Face, 11 deg 19 min Lead Angle, Steel

  • Manufacturer: Martin Sprocket & Gear
  • Brand: Martin
  • BSC Item#: WH16D MART
  • MPN: WH16D
  • UPC: 697950051307
  • Min. Order Qty: 1
  • Qty. Interval: 1
    • Availability: Call for Availability

Worms and worm gears are used to power right angle, non-intersecting shafts. In normal applications the worm gear is driven by the worm. The most popular use of worms and worm gears is in applications where high ratio speed reduction is desired in a relatively limited space. They are also used in applications where high resistance to the worm gear shaft reversing and driving back through the worm is desired.

Martin Helix Angle Worm, Reborable, 1/4 in Bore, 3/4 in OD, 2 Threads, 16 Diametral Pitch, 5/8 in Pitch Diameter, 1 in Face Width, 11 deg 19 min Lead Angle, Right Hand Direction of Rotation, 0.46 in Diameter Hub, 1/4 in Hub Projection, 1-1/4 in Overall Length, 14.5 deg Pressure Angle, Steel

  • Precise machining and processes ensure consistent finish and high quality
  • AGMA 6 to 8 commercial class gear
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_WG3_Catalog.pdf
  • pdf Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Martin_WG3_Specification_Sheet.pdf
