McGill®
2121800000

Special duty CAMROL® bearings are available feature black oxide treated bearing steel in both inch and metric sizes for your motion control needs. The bearing is comprised of a thick section outer race and caged (retainer) needle roller set. These provide the basic foundation for a cam follower suited for severe duty. Integral flange constructions, on stud version bearings help maintain bearing integrity throughout the service life. A metallic face plug seal provides a wear resistance seal. LUBRI-DISC® seal provides a barrier for contaminate entry to support reduced maintenance applications.

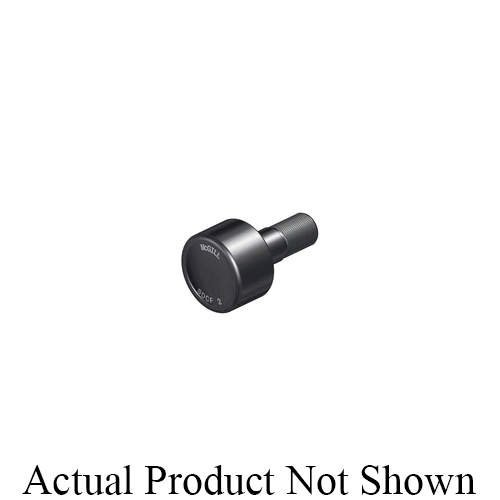

McGill® CAMROL® Cam Follower, Cylindrical OD Special Duty, Series: SDCF, 1-1/4 in Roller Diameter, 3/4 in Roller Width, 1/2 in Stud Diameter, 1-1/4 in Stud Length, 1/2-20 UNC Thread, 5/8 in Thread Length, 2050 lb Static Load, 8100 rpm Maximum, -20 to 250 deg F, Standard Stud, Sealed Closure, Hex Head, Chrome Steel Roller, 8620H Steel Stud, Black Oxide

• A heavy sectioned outer race design to help withstand shock loading of cam follower operation
• Inner studs are heat treated in the roller path and flange surfaces
• Large lubricant reservoir design with custom sealing, comprised of LUBRI-DISC® thrust washer and heavy duty aircraft technology
• It also boasts an inboard seal and end plug outboard to help keep contaminants out and lubrication in
• The inch design threads are manufactured to a class 2 tolerance
• Bearings are supplied pre-lubricated with synthetic grease and maintenance free
