Baldor-Reliance
EM3555

Baldor-Reliance HVAC motors are specifically engineered with industry-driven designs to keep your air handling systems running smoothly, quietly, and efficiently, which means better system reliability and performance, with less maintenance.

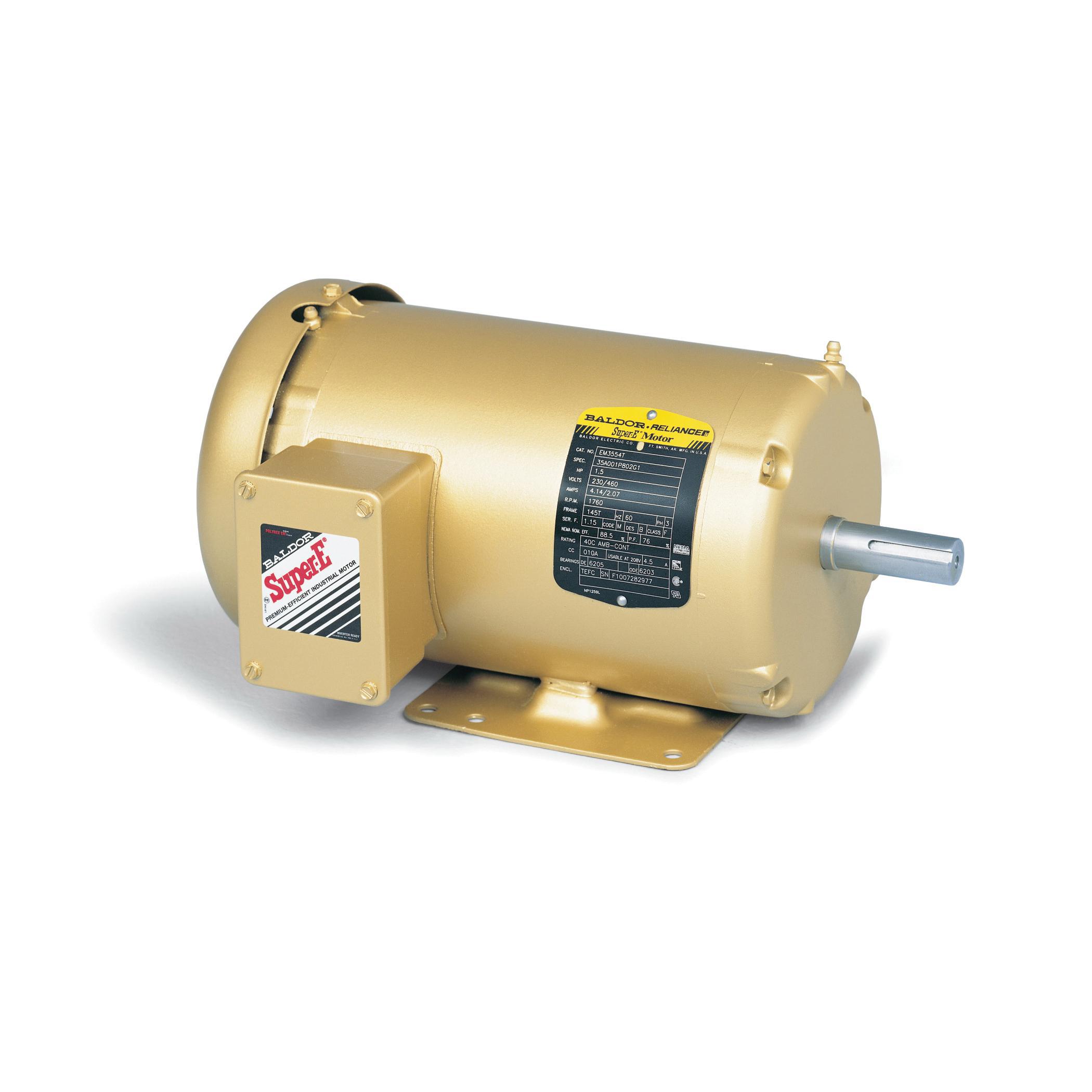

Baldor-Reliance AC Motor, Type 3526M Continuous Duty, General Purpose AC Motors, Fan & Blower Motors, Compressor Motors Application, 2 hp, 208/230/460 VAC, 5.3/5/2.5 A, 60 Hz Frequency, 3 ph, 3490 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56 Frame, 5/8 in Shaft, Reversible Rotation, 1.15 Service Factor, Ball Bearing, 2.98 ft-lb Torque, Foot Rigid Mounting, 40 to 76 deg C, Insulation Class: Class F, Steel, 13-1/4 in L x 10.26 in W Dimensions

• 60 Hz designs with 50 Hz information on 2, 4, 6 pole 1 to 125 hp ratings
• Suitable for inverter use per NEMA MG1 part 31.4.4.2
• Simple F1 to F2 conversion on cast iron frames
• Designed for longevity with ok 3 years warranty on premium efficient Super-E® motors

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_EJM3559_Catalog.pdf
• Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_EM3555_Line_Drawing.pdf
• Full Engineerin... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_EM3555_Technical_Drawing.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_61ace1db3ce17137b053f7927e040d0b3e69c8560d7d94c1bb31483d4b5d30a0.pdf
• Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f72c3f2fd40e44bf27049362066fbbce79f483ddafb5d33790909f1947046c15.pdf
