Baldor-Reliance
VM3538

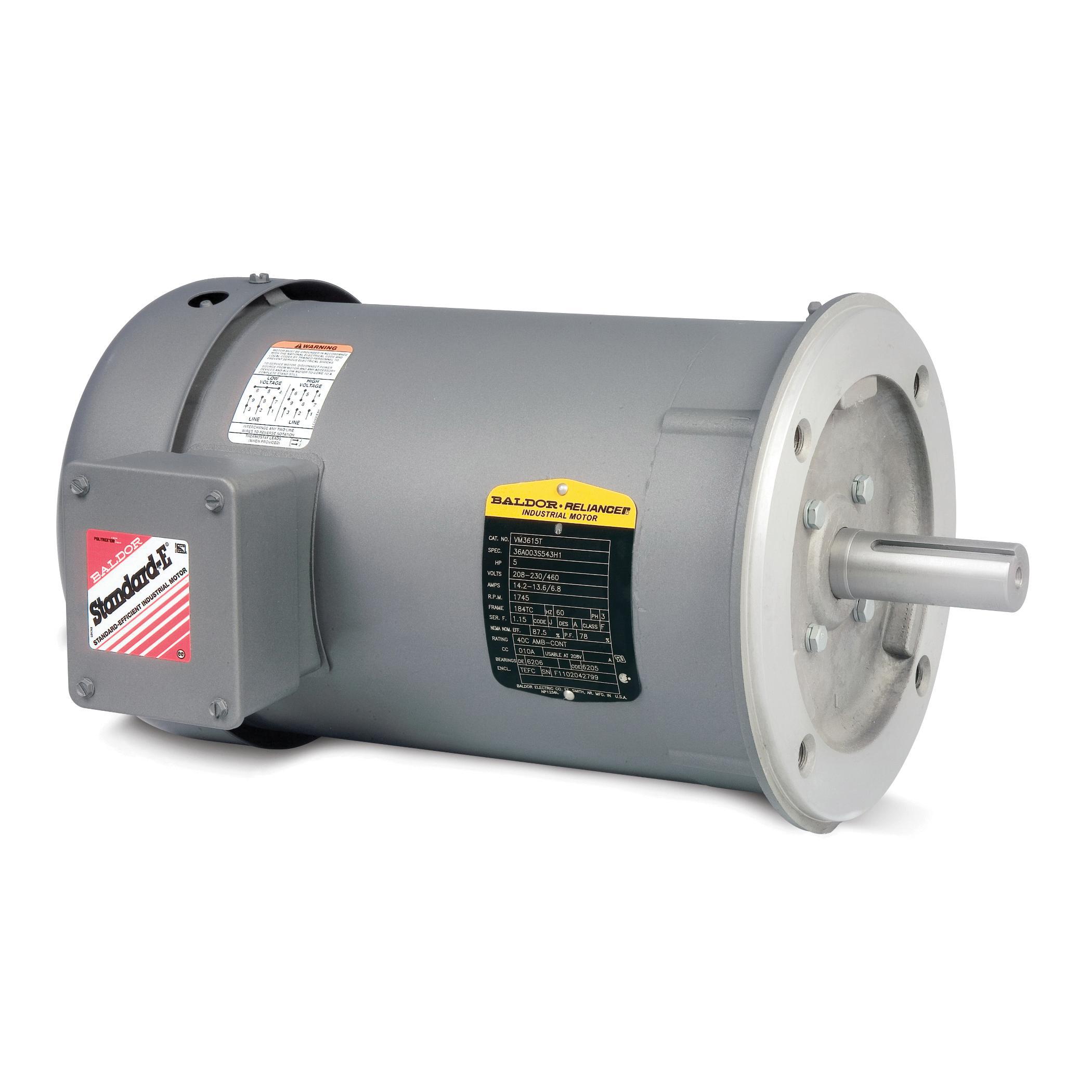

Baldor-Reliance AC Motor, Type 3416M Continuous Duty, General Purpose AC Motors, Compressor Motors, Fan and Blower Motors Application Type, 1/2 hp, 208/230/460 VAC, 2.5/2/1 A, 60 Hz, 3 Phase, 1725 rpm, 1 Speed, TEFC/NEMA B, 56C Frame, 5/8 in Shaft, Reversible, Service Factor: 1.25, Ball Bearing, 1.5 ft-lb, C-Face/Footless/F1 Mount, 40 to 76 deg C, Insulation Class: Class F, Steel, 11.35 in L x 9.27 in W

• Footless design reduces weight and improves safety
• Locked DE bearing to allow mounting in any configuration
• 60 Hz designs with 50 Hz information on 2, 4, 6-pole 1 to 125 hp ratings
• Suitable for inverter use per NEMA MG1 part 31.4.4.2
• Designed for longevity with ok 3 years warranty on premium efficient Super-E® motors

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_EJM3559_Catalog.pdf
• Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b54eb615ac0e6f0de161b255fe3732a7dd548797f85406e0fbe9a92c16c5f69c.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_eb7173e37fc3646dc48733202cd6c84e1baf6614d6de6133c95b350b94042a2a.pdf
• Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f72c3f2fd40e44bf27049362066fbbce79f483ddafb5d33790909f1947046c15.pdf
