Baldor-Reliance
JM3155

From industrial wastewater to fire suppression systems or commercial pools, Baldor-Reliance pump motors provide value by increasing reliability and reducing maintenance costs. Utilizing energy efficient designs, our pump motors meet NEMA Premium® efficiency and inverter ready with wide variable torque speed ranges. Motor construction can be tailored for specific applications and industries such as food processing, washdown applications or explosion proof enclosures for pumps in hazardous areas.

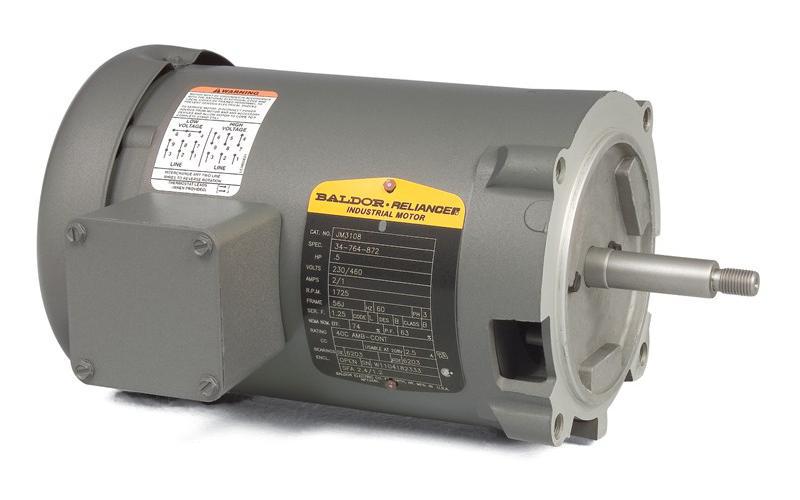

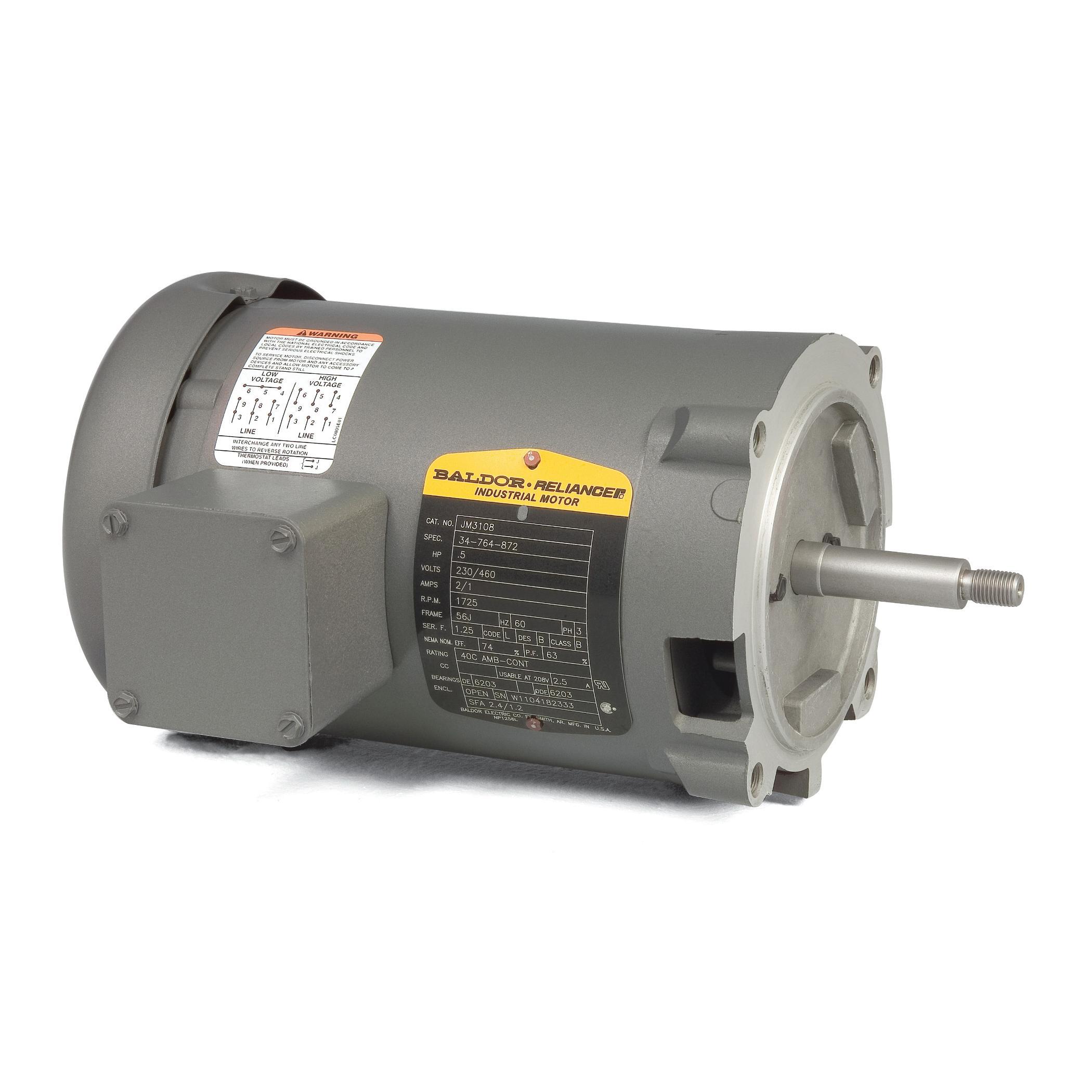

Baldor-Reliance AC Motor, Type 3430M Continuous Duty, General Purpose AC Motors, Jet Pump (JM/JP) Motors, Sewage & Wastewater Pump Motors Application, 2 hp, 208/230/460 VAC, 6.4/5.4/2.7 A, 60 Hz Frequency, 3 ph, 3450 rpm Speed, 1 Speed, Open Enclosure, 56J Frame, 5/8 in Shaft, Reversible Rotation, 1.2 Service Factor, Ball Bearing, C-Face Footed Mounting, 40 to 176 deg C, Insulation Class: Class B, Steel, 13.72 in L x 9.09 in W Dimensions

• Corrosion resistant stainless steel shaft extension
• Slotted opposite DE shaft for easy installation
• Dynamically balanced rotor to reduce noise and increase bearing life
• Optimized airflow design providing higher horsepower in a smaller package

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_EJM3559_Catalog.pdf
• Line Drawing https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_JM3155_Line_Drawing.pdf
• Full Engineerin... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Baldor_Reliance_JM3155_Technical_Drawing.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_b73f789304781573a977f04ed14a0ef8161772c0e823aa53015c6902ebcdf9be.pdf
• Warranty Inform... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_f72c3f2fd40e44bf27049362066fbbce79f483ddafb5d33790909f1947046c15.pdf
