Lovejoy®
69790400057

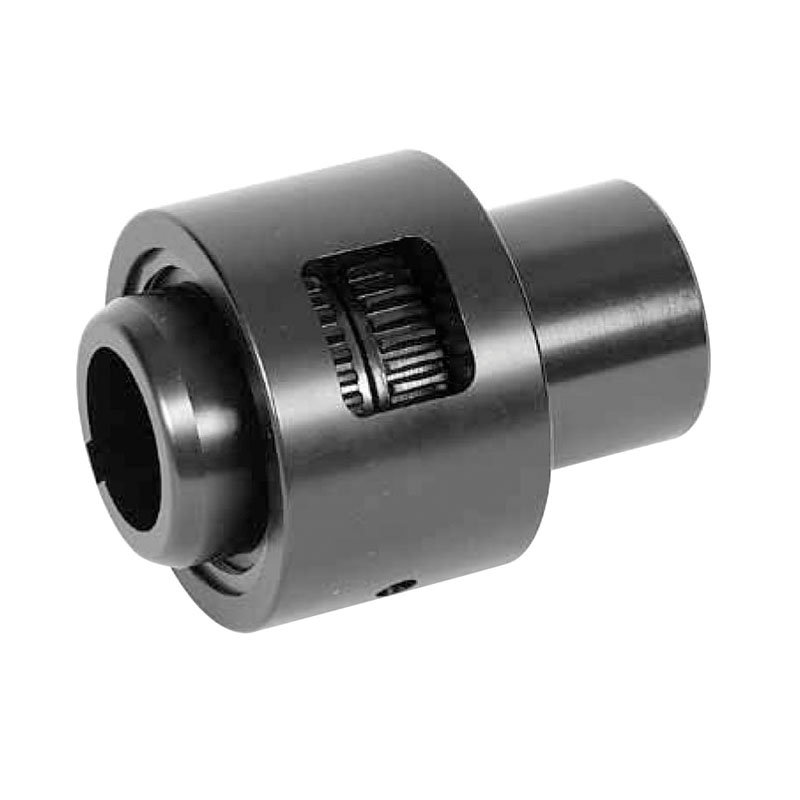

Lovejoy® 69790400057 Type CMM Center Bore Solid Standard Mill Motor Gear Coupling Hub, 1-1/2 Coupling, 1.63 in Dia Bore, 2.38 in Dia Hub, AISI 1045 Steel

Manufacturer: Lovejoy
Brand: Lovejoy®
BSC Item#: 0697904000573 LOVJ
MPN: 69790400057
UPC: 697904000573
CPN:
Min. Order Qty: 1
Qty. Interval: 1

Availability:

Call for Availability

Login to see price
Add To Cart
My List
Add / Remove CPN

DESCRIPTION
FEATURES
Documents
ADDITIONAL INFO

The CMM Type coupling consists of one standard flex hub, one universal hub, one standard sleeve and one accessory kit consisting of seals and snap rings.

Lovejoy® Mill Motor Gear Coupling Hub, Type CMM Center Bore Solid Standard, 1-1/2 Coupling, 1.63 in Bore, 2.38 in Diameter Hub, 1.81, 4 in Hub Length, 5000 rpm Unbalanced/15000 rpm Balanced Maximum, AISI 1045 Steel, Metallic

Designed with longer universal hub on one end to accommodate straight or tapered shafts
Standard hub and sleeve on the other end
Universal hub bored to customer specifications
Specifically designed for mill motors with tapered bores
Universal hub counter bored for the nut on the end of the motor shaft

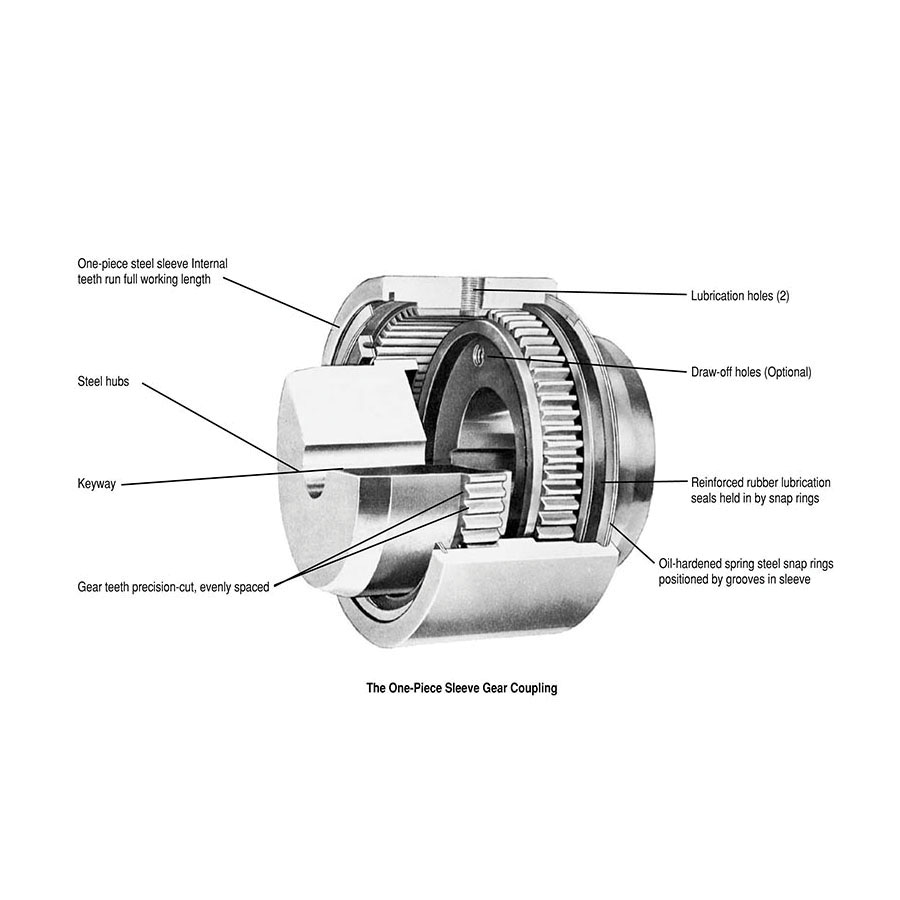

One-piece cylindrical sleeve for smoother, faster, quieter and safer operation
Quick assembly and disassembly

Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lovejoy_69790400400_Catalog.pdf
Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lovejoy_69790400057_Specification_Sheet.pdf
