Lovejoy®
68514472005

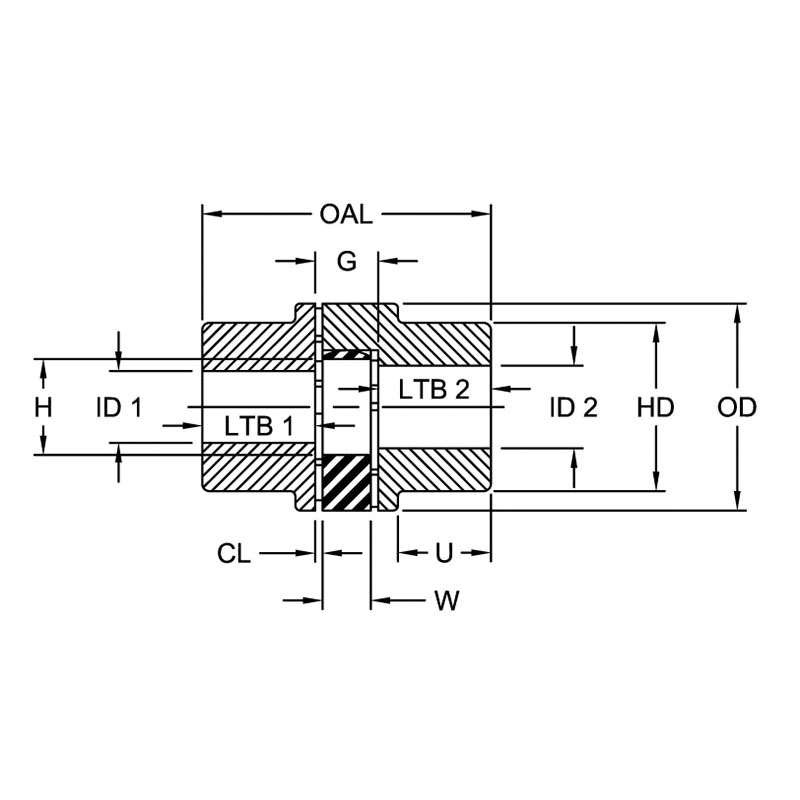

Lovejoy® Curved Jaw Coupling Hub, Style A, Series: CJ Series, 38 Coupling, 32 mm Bore, 80 mm Diameter Hub, 10 mm W x 3.3 mm D Keyway, 7100 rpm Maximum, 44.96 mm Length Through Bore, 5/16-18 Screw, Powdered Metal, Metallic

• Three-piece design that is easy to assemble
• The curved jaw design incorporates both radial and axial curvature (crowning) to the elastomer (spider)
• Hubs are offered in sintered iron, steel, aluminum, cast iron and nodular iron materials
• No metal to metal contact and no lubrication required
• Fail safe design due to the jaw in compression design (continues to function after the elastomer fails)
• The CJ series covers a torque range of 67 to 247800 in-lb

• Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lovejoy_68514460880_Catalog.pdf
• Instruction/Ins... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lovejoy_68514460880_Manual.pdf
• Specification S... https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lovejoy_68514472005_Specification_Sheet.pdf
