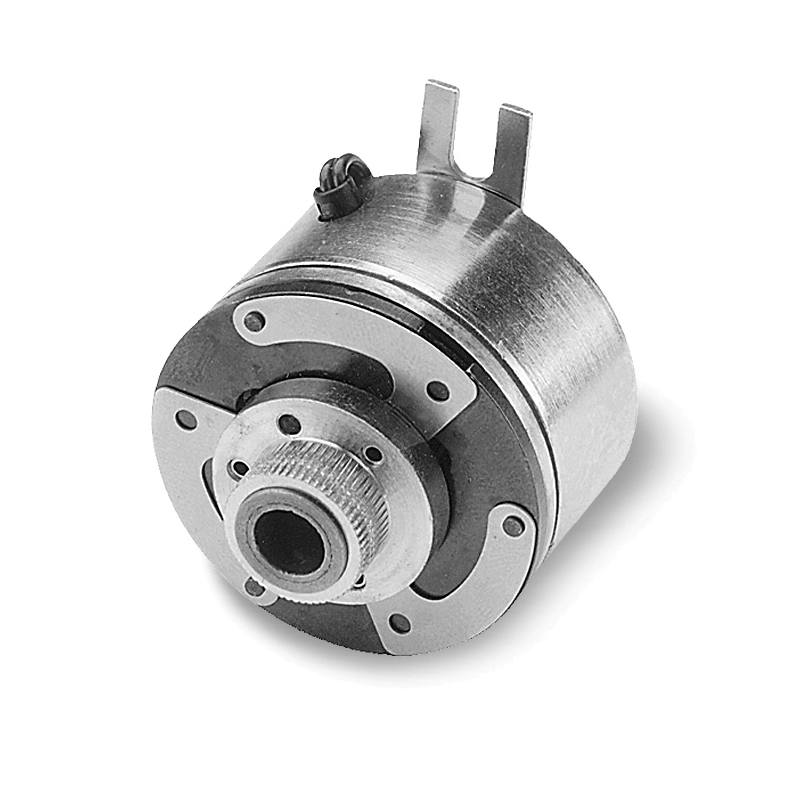

Deltran CS-22B24-E06-E06
Deltran CS-22B24-E06-E06 Friction Electromagnetic Clutch, 24 VDC, 40 in-lb Static Torque, 5000 rpm Max, 3/8 in Dia Bore
- Manufacturer: Thomson Industries
- Brand: Deltran
- BSC Item#: CS22B24E06E06 WARN
- MPN: CS-22B24-E06-E06
- Min. Order Qty: 1
- Qty. Interval: 1 Availability: Call for Availability
- Sold As: 1/PK
-
Login to see price
Electromagnet clutches and clutch couplings are used to couple two shafts either through the use of pulleys, gears, sheaves or direct inline mounting. The field electromagnet assembly is prevented from rotating by an anti-rotation tab or flange and the rotor and armature assembly are mounted securely. When the coil is energized, the armature engages the friction surface of the rotor coupling the two in-line shafts together for the coupling type, thus driving the load.

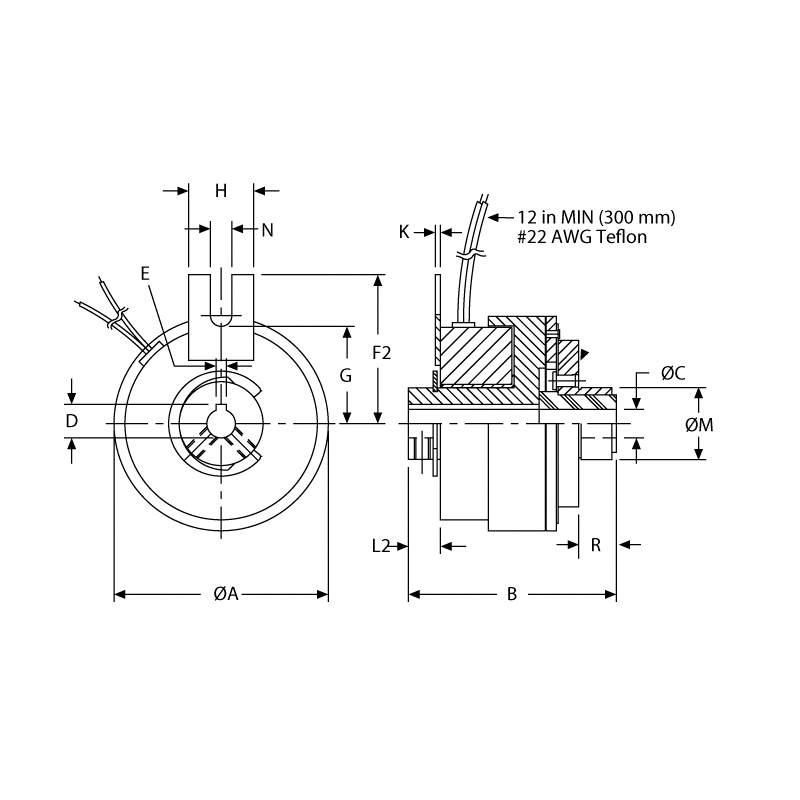

Deltran Electromagnetic Clutch, Friction, Series: CS Series, 3/8 in Bore, 2.26 in OD, 2.2 in Overall Length, 40 in-lb Static Torque, 24 VDC, 8.5 W Power, 5000 rpm Maximum, Shaft Mounting, Burnished Steel
- Efficient means of cycling load
- Fast response, repeatable performance
- Static or dynamic engagement
- Simple installation
- Economical cost
- Energy efficient
- Full corrosion protection
- Rotating components designed for low inertia and minimal drag
- Efficient low-power consumption coil, UL class B insulation system
- Integral, long-life bearings of advanced structural components
- Long-life wear surfaces
- Zero backlash design
- Size 2.26 frame
- Starting type motion clutch coupling
- Rotor bore
Catalog
| Standard/Approvals | : | DEKRA Certified |
| Application | : | Document Handling, Copiers, Printers, Collators, Sorters, Finishers, ATM Machines, Currency Counters, Vending Machines, Postal Handling Equipment, Ticket, Receipt Dispensing, Packaging, Material Handling and Office Automation |
