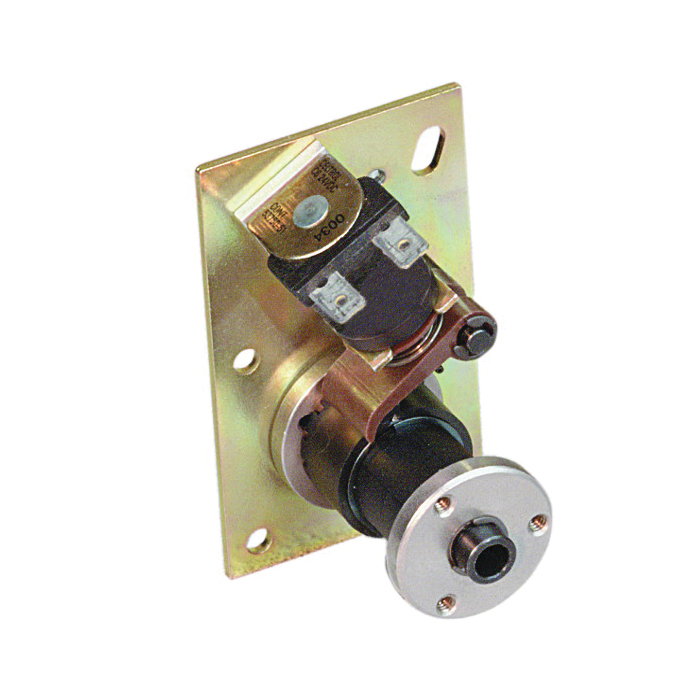

Deltran
776-20-011

The SAC series features four models of pre-assembled, solenoid actuated, Wrap Spring™ clutch packages. SAC units operate from a single AC or DC pulse to accurately start loads at speeds up to 1800 rpm, depending on size. Adjustable stop control collars provide easy and accurate output stop position settings. A typical SAC Series clutch will bring the load up to speed within 3 ms. They are easy to interface with PCs and industrial control systems. SAC Series clutches are accurate, repeatable, fast acting, simple, maintenance free and low cost.

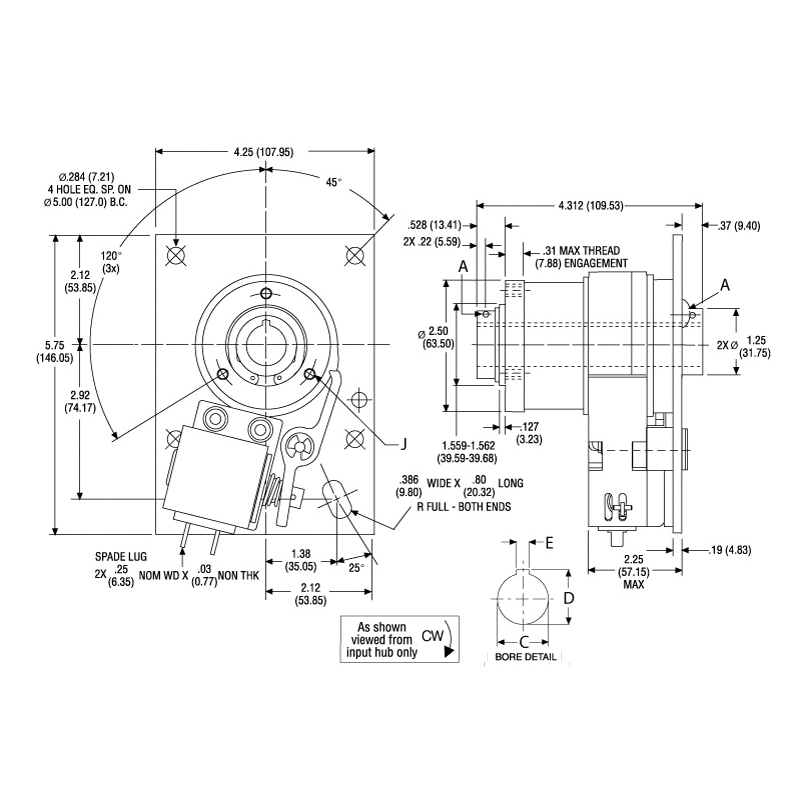

Deltran Wrap Spring™ Clutch, Solenoid Actuated, Series: SAC, 3/4 in Bore, 2-1/2 in OD, 4-1/4 in Overall Length, 500 in-lb Static Torque, 115 VAC, 500 rpm Maximum, Horizontal Mounting, 4.312 in W x 5-3/4 in H Dimensions

• Solenoid actuated, Wrap Spring™ clutch package
• High torque in small package
• Actuating solenoid is AC or DC operated
• Anti-rotation slot for simple pin mounting
• Maintenance free, self-lubricating hubs are 18% oil by volume
• Hub mounting holes for simple pulley or sprocket mounting
• Sintered metal hub offers easy machining for custom drive attachments
• Single or multi-stop collars control rotation
• Counterclockwise rotation, hub input and indexing type motion clutch
• Size 6 frame
